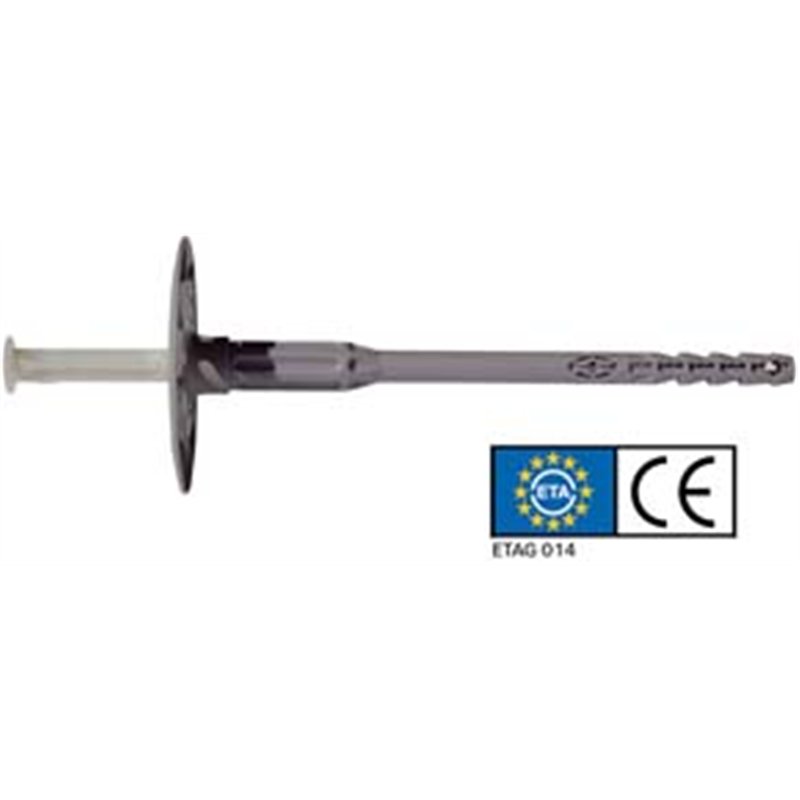

The Fischer TermoZ CN 8/230 Fixing is a hammer anchor designed for fixing insulation panels in external thermal insulation systems (ETICS). Thanks to its composite pin, it offers a high holding force and reduces the formation of thermal bridges.

Main features
Quick installation: it can be applied with a few hammer blows.

Adaptability: the fixing disc is only 2.5 mm thick, allowing the application of thin layers of skim coat.

High resistance: the steel tip of the composite pin guarantees a strong hold.

Reduced anchoring depth: only 35 mm, reducing drilling times.

Compatibility: can be combined with DT 90, DT 110 and DT 140 retaining discs for very soft insulation materials.

Supported thicknesses: suitable for insulation materials up to 340 mm.

Support materials
The TermoZ CN 8/230 is compatible with various construction materials, including:

Concrete and autoclaved aerated concrete.

Solid bricks in clay and calcium silicate.

Hollow blocks in lightweight concrete.

Vertically perforated semi-solid bricks.

Applications
Fastening of insulation panels in polystyrene, mineral wool, wood and PU-hardschuim.

Installation on masonry and concrete.

Ideal for external thermal insulation systems (ETICS)
