Reduced price

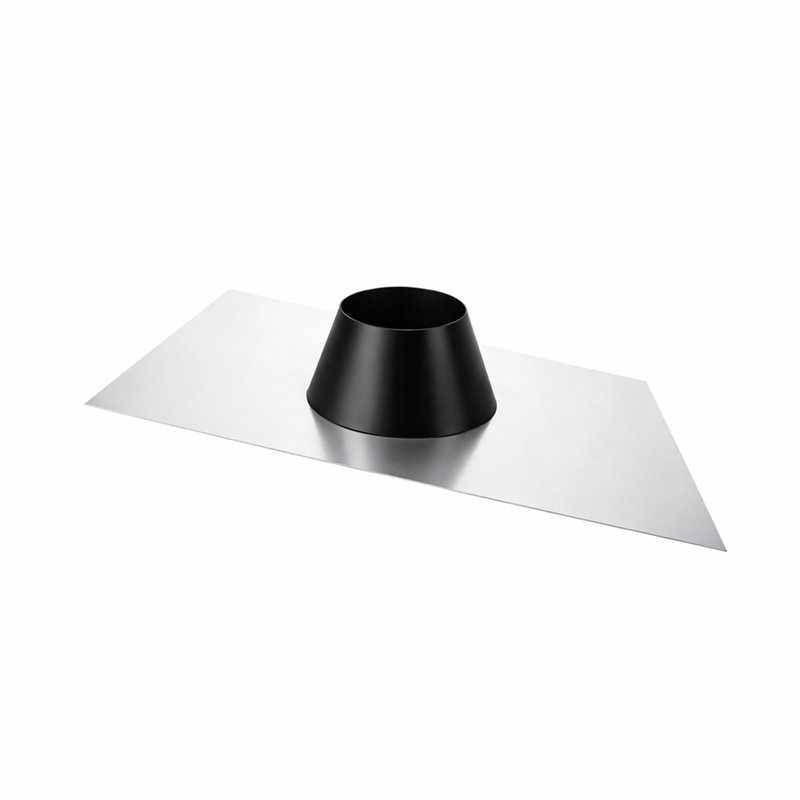

Pitched roof flashing with aluminum base and matte black storm collar for chimney flues.

Name: Pitched roof flashing with aluminum base and matte black storm collar for chimney flues.
Brand: De Marinis
SKU: NFAINBA
Price: 60.65 EUR
Availability: PreOrder

Reference NFAINBA100

Brand De Marinis

Pitched roof skirt with malleable ALUMINIUM base for chimney flue

De Marinis Mono INOX and ISO series
Available from 100mm diameter up to 300mm diameter

TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

ORDERS PREPARED WITH CARE

We prepare every order with care

Description
Product Details

Description

PITCHED ROOF FLASHING WITH ALUMINUM BASE
STAINLESS STEEL CHIMNEY FLUE
MATTE BLACK PAINTED STORM COLLAR

Pitched roof flashing made of painted GALVANIZED steel; the ideal choice for outdoor installations, combining product quality, efficiency, and durability.

It can be paired with any type of heat generator with a maximum operating pressure of 200 Pa or operating temperatures up to 600°C (wood-burning, pellet, or biomass stoves, fireplaces, ovens, domestic or industrial range hoods, traditional or condensing gas boilers, etc.).

The entire ISO 25 INOX line is certified according to European Standard EN-1856-1:2009 and is backed by a 10-year warranty.

This flashing for pitched roofs is installed by positioning the base underneath the roof tiles; suitable for roof pitches ranging from 5° to 30°.

Technical Data / Designation: Chimney System EN 1856-1:2009

Feature	Specification
Temperature Class	T200 (with gasket) - T600 (without gasket)
Pressure Class	P1 (with gasket) - N1 (without gasket)
Condensate Resistance	W (with gasket) - D (without gasket)
Corrosion Resistance Class	V2 (solid and liquid fuels)
Material Specification	Aluminum base - Outer wall in painted galvanized steel

	Cod.	Øn	Øf	H	A	B
Lamiera Verniciata	NFAINBA100	100	115	190	500	450
Lamiera Verniciata	KNAINBA120	120	135	190	550	500
Lamiera Verniciata	NFAINBA130	130	145	190	550	500
Lamiera Verniciata	NFAINBA150	150	165	190	600	550
Lamiera Verniciata	NFAINBA180	180	195	190	700	650
Lamiera Verniciata	NFAINBA200	200	215	190	700	650
Lamiera Verniciata	NFAINBA230	230	245	190	750	700
Lamiera Verniciata	NFAINBA250	250	265	190	750	700
Lamiera Verniciata	NFAINBA300	300	315	190	850	750
