- Reduced price
Reference: K1T180
Brand: De Marinis
1 meter pipe RM1T1 ISO10 HAMMERED COPPER Double wall flue
Double wall flue ISO10 HAMMERED COPPER effect - RM1T1 De Marinis - 1 meter pipe
No supplier

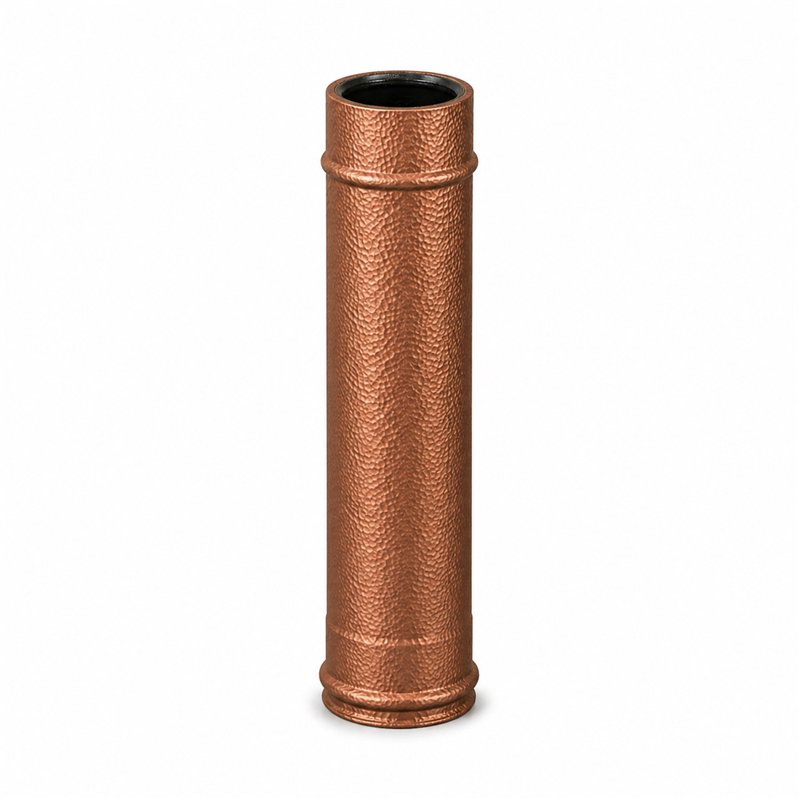

Double wall flue ISO10 HAMMERED COPPER effect - RM1T3 De Marinis - 0.33 meter pipe
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
LINEAR ELEMENT LENGTH CM.33
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO 10 SYSTEM painted effect COPPER
Iso10 is the double-walled flue system insulated with 10mm high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in RUSTY-effect painted GALVANIZED steel or MATT BLACK or HAMMERED COPPER; the ideal choice for outdoor installations which combines product quality, efficiency, durability and above all reduced dimensions
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years
The 330 mm straight element is used to create horizontal or vertical sections
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel th. 0,4- External wall in painted steel
Cod. | Øi | Øe | Hu | I | |
---|---|---|---|---|---|
Acciaio verniciato | I1T380 | 80 | 100 | 275 | 45 |
Acciaio verniciato | I1T3100 | 100 | 120 | 275 | 45 |
Termini consegna materiale : 3 settimane lavorative
Certificazione : KIWA
Garanzia: 10 Anni
Reference: K1T180
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1T1 De Marinis - 1 meter pipe
Reference: RM1TO80
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1TO De Marinis - Truncated conical end cap
Reference: KFB100
Brand: De Marinis
20mm locking collar KFB RUSTY Double wall flue
Reference: RM1RCI80
Brand: De Marinis
Single-double joint RM1RCI ISO10 HAMMERED COPPER Double wall flue
Reference: KCF100
Brand: De Marinis
Flashing for double wall flue flue ISO25 RUSTY De Marinis
Reference: RM1C05100
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1C05 De Marinis - 5° bend
Reference: KFAINBA
Brand: De Marinis
Pitched roof skirt with malleable ALUMINIUM base for chimney flue De Marinis Mono INOX and ISO seriesAvailable from 100mm diameter up to 400mm diameter
Reference: K1T9R
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1TR De Marinis - Reduced mono 90° Tee Ø 80mm
Reference: KCOFO100
Brand: De Marinis
Rosette cover KCOFO RUSTY Double wall flue
Reference: RM1T980
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1T9 De Marinis - 90° Tee
Reference: RM1RCDR80-100
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1RCDR De Marinis - Reduction fitting
Reference: KFAIN100
Brand: De Marinis
Sloping roof skirt with stainless steel base for chimney flue De Marinis Mono INOX and ISO seriesAvailable from 100mm diameter up to 600mm diameter
Reference: KCT100
Brand: De Marinis
Cable tie for double wall flue ISO25 RUSTY De Marinis
Reference: RM1PPC80
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1PPC De Marinis - Base plate with central condensate drain
Reference: RM1C1580
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1C15 De Marinis - 15° bend
Reference: RM1PI80
Brand: De Marinis
Double wall flue ISO10 HAMMERED COPPER effect - RM1PI De Marinis - Intermediate support plate
