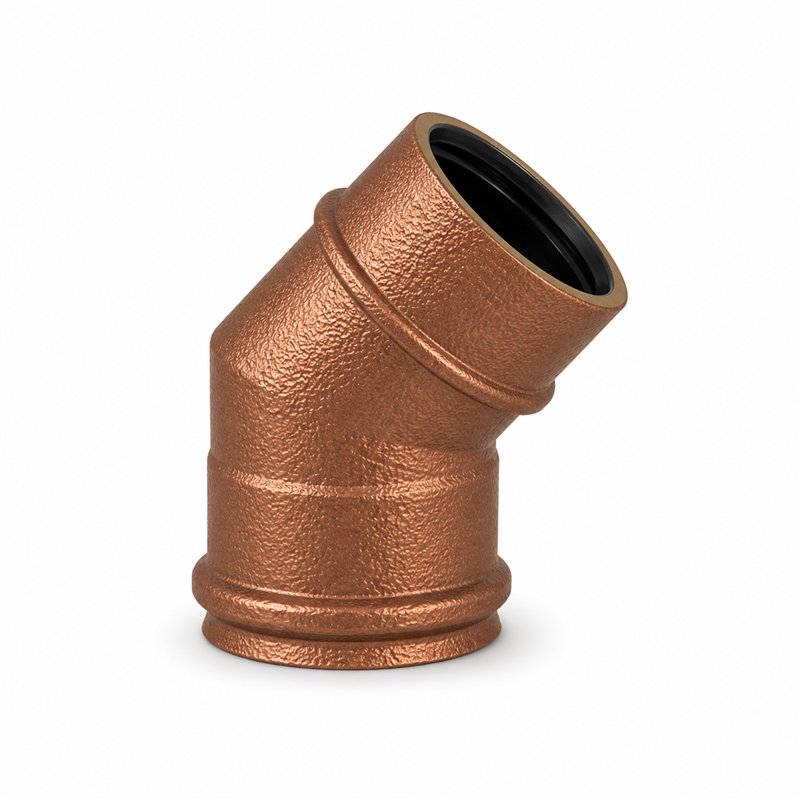

45° bend RM1C4 ISO10 HAMMERED COPPER Double wall flue

RM1C480

Double wall flue ISO10 HAMMERED COPPER effect - RM1C4 De Marinis - 45° bend

Finitura
Diametro
€56.20
€44.96 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

45° BEND
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO 10 SYSTEM HAMMERED COPPER


Iso10 is the double-walled flue system insulated with 10mm high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in GALVANIZED steel painted with HAMMERED COPPER effect; the ideal choice for outdoor installations which combines product quality, efficiency, durability and above all reduced dimensions

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The entire ISO 10 line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

The 45° bend allows you to make both horizontal and vertical movements

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel th. 0,4- External wall in painted steel

 Cod.ØiØeABCDI
Acciaio VerniciatoRM1C4808010091361162545
Acciaio VerniciatoRM1C410010012095401232845


material delivery: 3 week

Certificazione :
KIWA

Garanzia: 10 Anni

Product Details
RM1C480

Specific References

MPN
RM1C4
