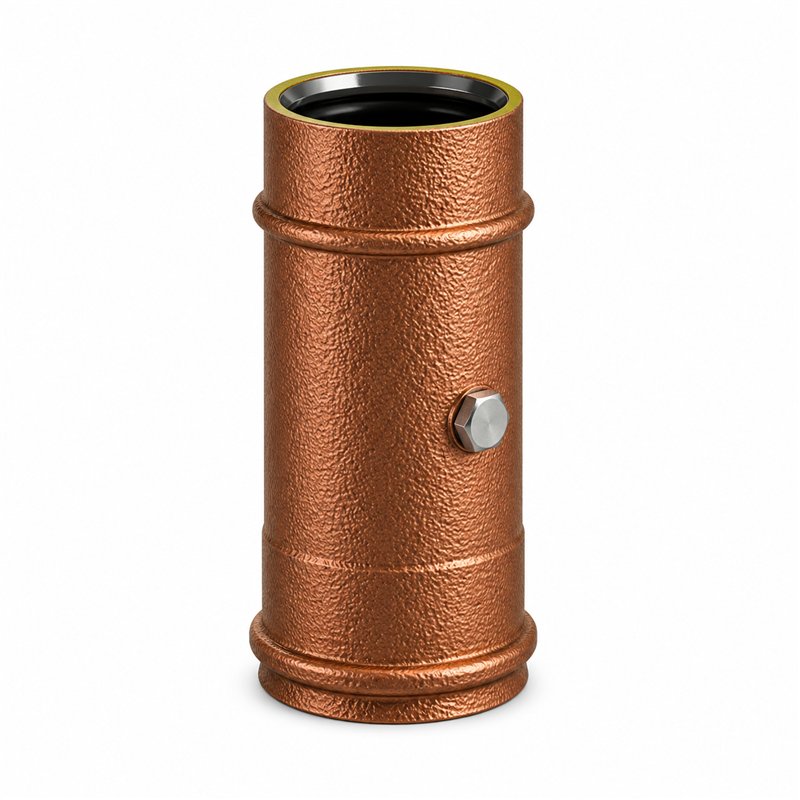

FUME PROBE INSERTION MODULE
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO 10 SYSTEM HAMMERED COPPER

Iso10 is the double-walled flue system insulated with 10mm high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in GALVANIZED steel painted with HAMMERED COPPER effect; the ideal choice for outdoor installations which combines product quality, efficiency, durability and above all reduced dimensions

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The entire ISO 10 line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

The fume detection module, required by the UNI 10640 and UNI 10641 standards, is used for the analysis and control of the fume temperature and the detection of combustion efficiency

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel th. 0,4- External wall in painted steel

Material delivery terms: 20 working days

Certification : KIWA

Warranty: 10 Years
