TELESCOPIC ELEMENT 345/260mm
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO 10 RUSTY SYSTEM

Iso10 RUSTY is the double-walled flue system insulated with 10mm high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in RUSTY-effect painted GALVANIZED steel or MATT BLACK or HAMMERED COPPER; the ideal choice for outdoor installations which combines product quality, efficiency, durability and above all reduced dimensions

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

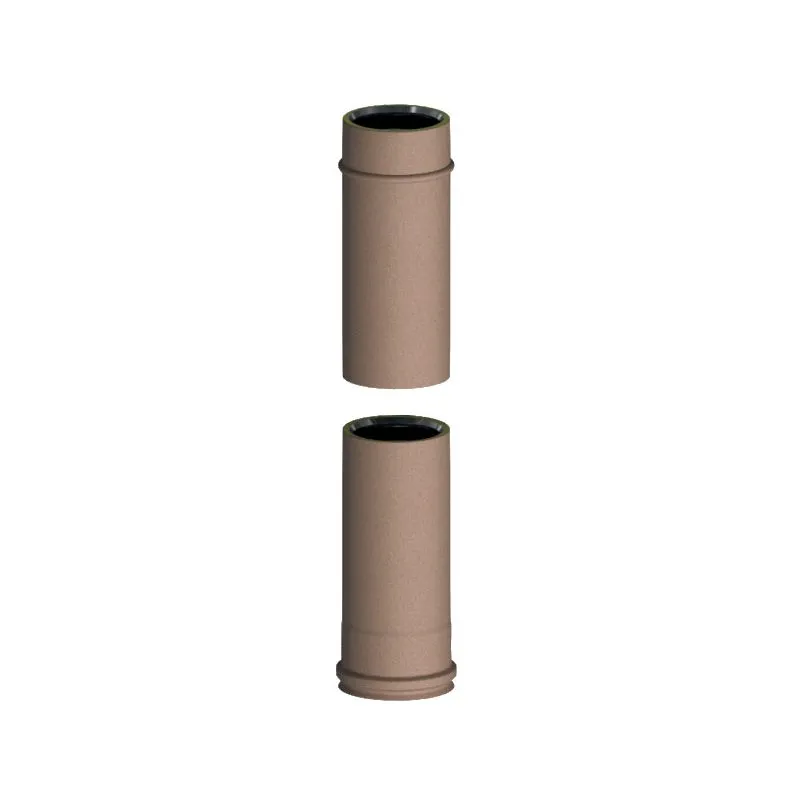

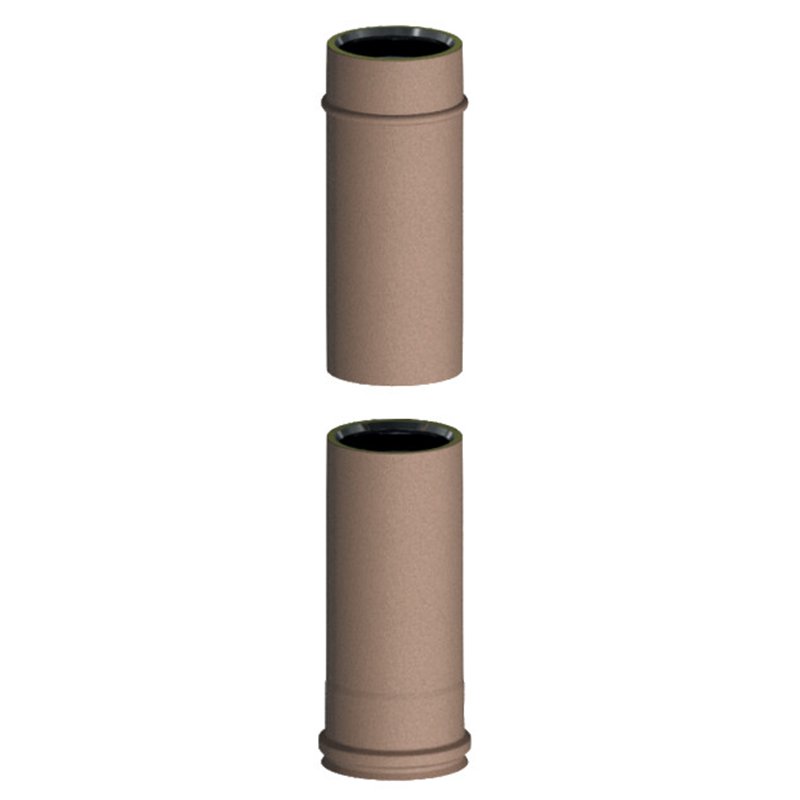

The telescopic element allows you to create sub-horizontal sections of fixed length and with a minimum slope of 3% where it is not possible to use the straight element.

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel th. 0,4- External wall in painted steel

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
