Description

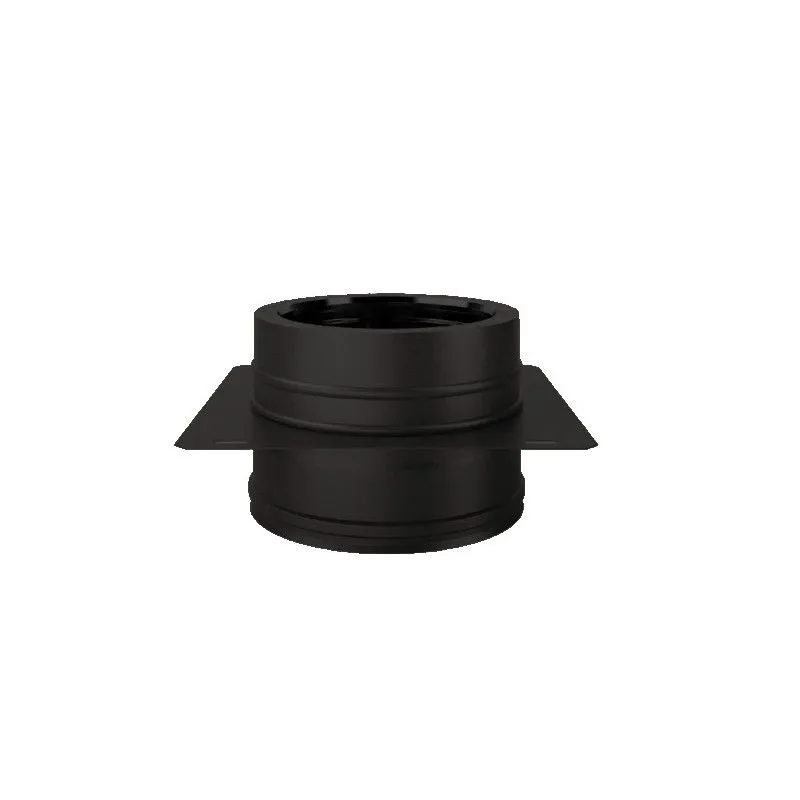

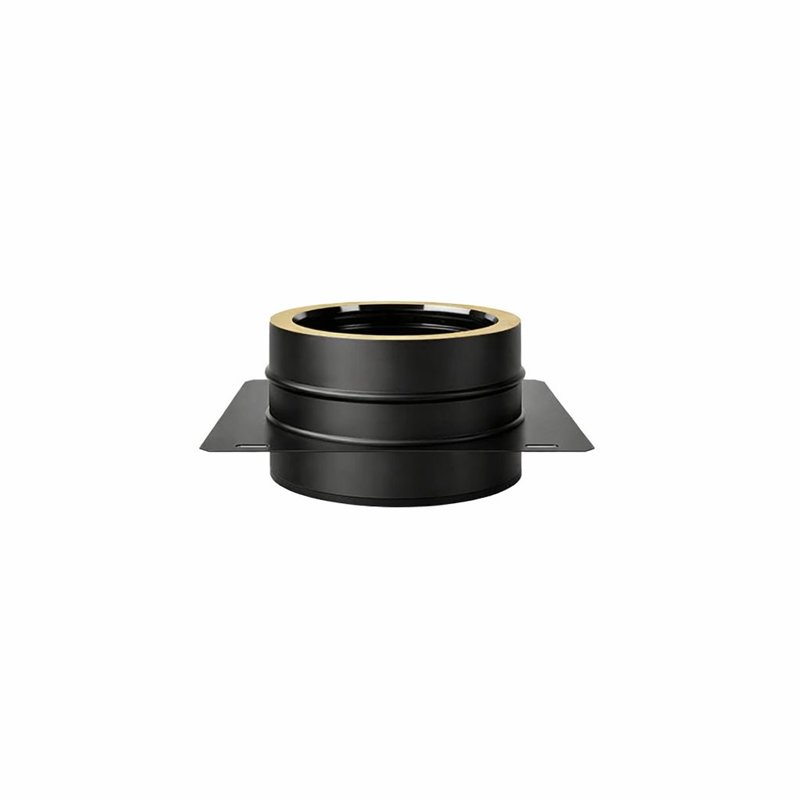

INTERMEDIATE PLATE WITH STRAIGHT ELEMENT
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO25 SYSTEM MATT BLACK

Iso25 is the double-walled flue system insulated with 25mm high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in MATT BLACK painted GALVANIZED sheet metal; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The entire ISO 25 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

The intermediate plate, rested on a structure or through support flaps art. k2CP allows you to divide the weight loads into several points ensuring greater stability

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel - External wall in galvanized sheet



  Cod. Øi Øe Hu Hn A B I
Lamiera Zincata K2PI80 80 130 130 92 220 200 45
Lamiera Zincata K2PI100 100 150 130 92 240 220 45
Lamiera Zincata K2PI130 130 180 130 92 270 250 45
Lamiera Zincata K2PI150 150 200 130 92 290 270 45
Lamiera Zincata K2PI180 180 230 130 92 320 300 45
Lamiera Zincata K2PI200 200 250 130 92 330 320 45
Lamiera Zincata K2PI250 250 300 130 92 390 370 45

Garanzia: 2 Anni

Termini consegna materiale : 1 settimana

Certificazione :
KIWA
