PAIR OF SUPPORT FINS
STAINLESS STEEL FLUE - DOUBLE WALL INSULATED
ISO SYSTEM

ISO is a double-wall flue system insulated with 25 mm of high-density mineral wool, with an internal wall made of AISI 316 stainless steel and an external wall made of galvanized sheet metal painted matte black. It's the ideal choice for outdoor installations, combining product quality, efficiency, and durability.
Mechanical joint with locking collar and optional sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200 Pa or operating temperatures of up to 600°C (wood, pellet, or biomass stoves, fireplaces, ovens, range hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European standard EN-1856-1:2009 and is guaranteed for 10 years.

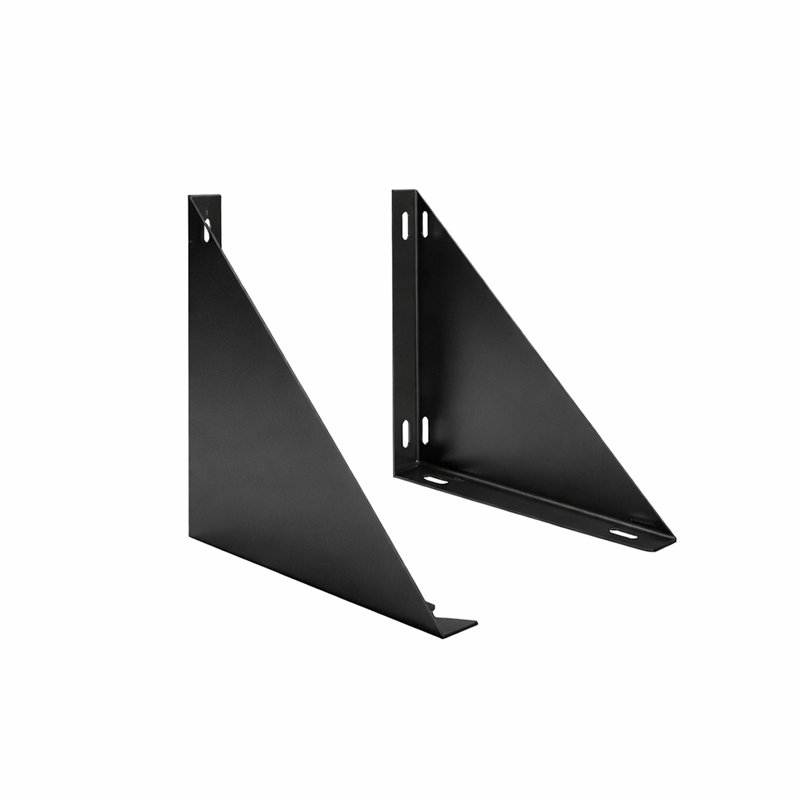

The support fins, supplied in pairs, are used to secure both the base and intermediate plates to the wall.

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Inner wall in AISI 316 stainless steel - Outer wall in galvanized sheet metal

Termini consegna materiale :
20 GIORNI

Garanzia: 2 Anni

Certificazione : KIWA
