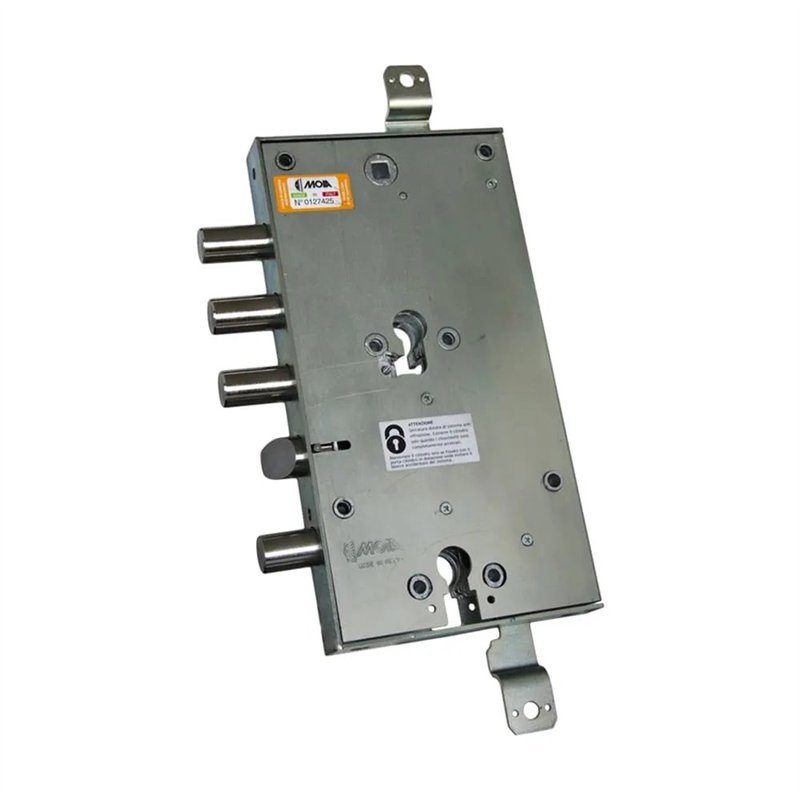

ARMOURED DOOR LOCK
MOIA 6654/280DFB/S1
COMPATIBLE WITH MOTTURA

The MOIA 6654/280DFB/S1 armoured door lock is an advanced solution for the security of homes and offices. Equipped with a double reversible European cylinder, this triple lock offers a multifunction mechanism with gears in the upper part and levers in the lower part. The system is operated by two security cylinders: one for the main bolts and the other for the additional ones.

The lock is designed to be mounted inside the door, connecting the rods in the upper and lower part. The upper cylinder activates the steel bolts above the latch, creating a trap that blocks the lock in the event of a break-in, if the cylinder is broken or removed in the closed position. Both cylinders must be protected with an anti-tube cylinder protection, which can be installed on M6 holes int. 38 mm.

This lock offers two distinct functions: "Master" and "Service". The master key allows you to open and close both cylinders, while the service key allows access to only one of the two, facilitating access management and control. Thanks to the 5-wheel gear mechanism, it is possible to install an electronic or motorized cylinder, making the lock intelligent and projected towards the future of security

Reversible triple GEAR lock for armored doors.
Double mechanism for European cylinder.
2 throws and reversible latch + 1 service lock.
Internal anti-drill plate.
Cylinder fixing with cylinder holder and anti-burglary block.
Cylinders, escutcheons and rods not included.
Defender distance mm.38 M6 screws
M Series COMPATIBLE WITH MOTTURA

RODS AND CYLINDER NOT INCLUDED
