Security lock for armored door
Mottura 89.571EF3 EFFEPI
Triple with 1/2 turn
double bit key

Triple with half turn operated by the handle square and the key

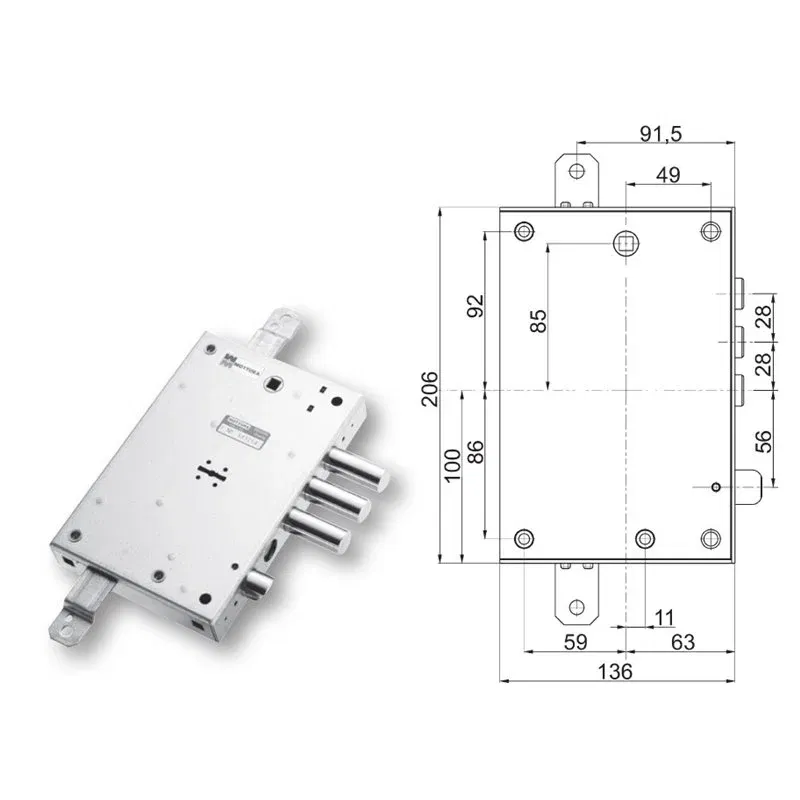

• Box size 136x206
• Key entry mm.63
• Deadbolt center distance mm.28
• Rod stroke mm.20
• Bolt stroke mm.40
• 3 double bit keys 40mm supplied
• 1/2 turn reversible
• RIGHT OR LEFT hand version

(the photo refers to the RIGHT version)

52.571EF3 Version with ANTIDECO DUE double bit key and possibility of quick replacement of the coding group (Mottura Easy GO system)
The lock must be removed to change keys

Important note:

The 'SPARE PART' armored door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
