Security lock for armored door
Mottura 89.F310/00Q FERBONA
Triple with 1/2 turn
prepared for double cylinder

• Triple with half turn
• Upper lock operated by handle square, controls 2 bolt dia.18mm stroke 40mm
• Lower lock operates 2 lower bolts dia.18mm stroke 29mm
• Box size 150x300mm
• Key entry mm.80
• 2 Throws
• Bolt center distance mm.93+105
• Rod stroke mm.35
• Special rod fixing

THE LOCK IS SUPPLIED WITHOUT CYLINDERS

RIGHT OR LEFT hand version

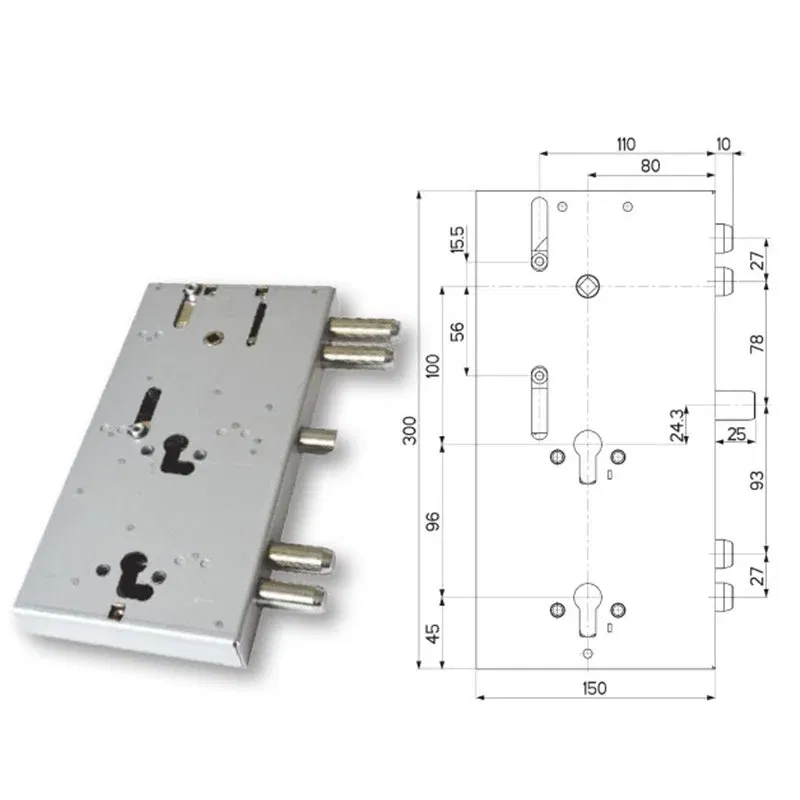

(the photograph refers to the RIGHT version)

Important note:
The 'SPARE PART' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take some time longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
