Reference: 103.91057DB
Brand: Mottura
Nucleo for 91057DB DIBI
Nucleo for 91057DB DIBI
Mottura 89.G515W2DQ triple 1/2g GASPEROTTI armored door lock
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

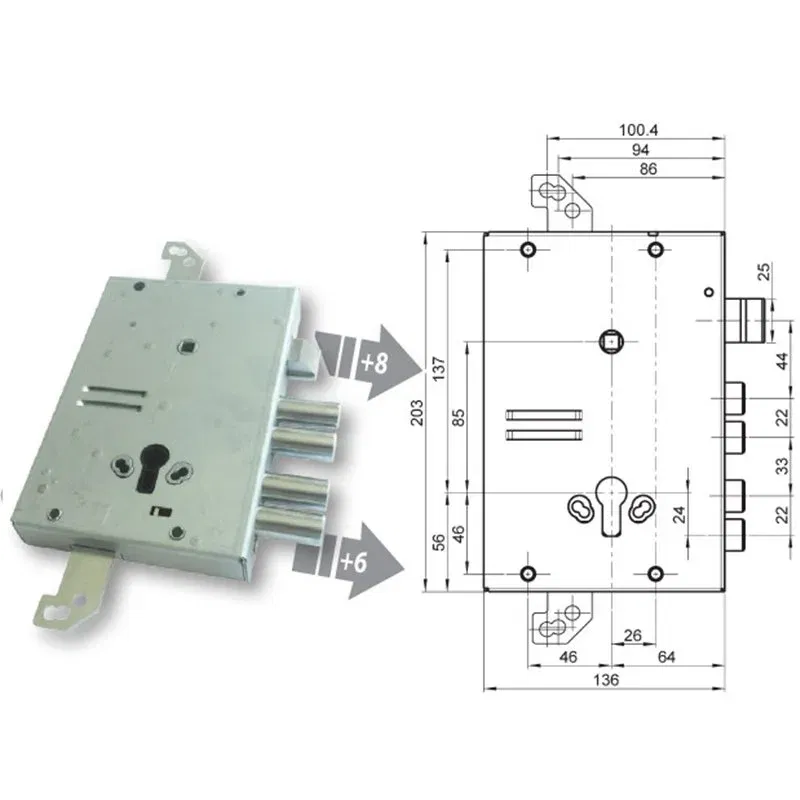

Security lock for armored door
Mottura 89.G515W2DQ GASPEROTTI
Triple with 1/2 turn
prepared for European cylinder
Triple
Reversible half turn in steel operated by handle square and cylinder + 8MM
GEAR movement
Box size 136x203
Key entry mm.64
2 Throws
Bolts diam.18mm stroke 29mm + 6MM
Rod stroke mm.30
Fixing by means of 4 bushings
THE LOCK IS SUPPLIED WITHOUT CYLINDER
AMBIDEXTROUS hand version
Important note:
The 'SPARE PART' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order in as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
