Security lock for armored door
Mottura 89.597B37 CIR
Triple with half turn diam. 20mm
double bitted key with European cylinder service lock

Multi-system Mottura locks allow armored doors to be upgraded with old-generation double-bit locks and, at the same time, allow you to inhibit opening with the master key

Main lock with double-bitted security key (A)
Service lock predisposed for the European cylinder (B) - the lower cylinder operates the latchbolt, bolt and upper key entry closure

Double-bit main lock
Service lock controlled by a European profile cylinder (not supplied)
Key backset and handle mm.63
Easy-Go system for easy key changes
4 bolts diam.18mm
Rod stroke mm.20
Bolt travel mm.40 (+6mm)
Equipped with 3 double bit keys of 40 mm
Reversible half turn
Standard bolt distance 37mm

RIGHT OR LEFT hand version

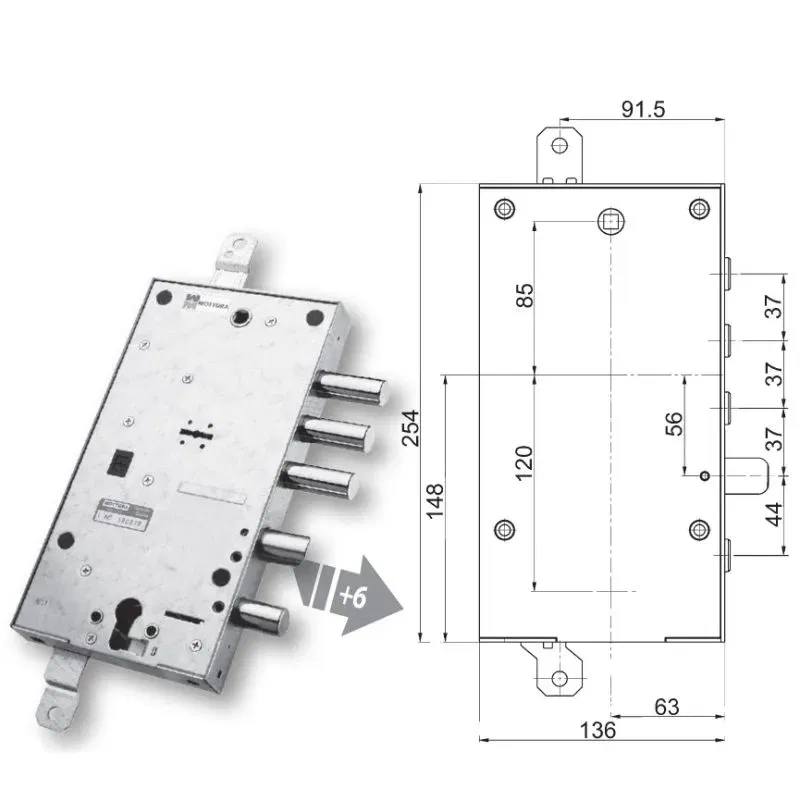

(the photograph refers to the RIGHT version)

Version with ANTIDECO DUE double-bitted key and possibility of quick replacement of the bitting unit (Mottura Easy GO system)
The lock must be removed to change the keys

Important note:

'SPARE PARTS' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
The WITHDRAWAL cannot be requested on this product
