Security lock for armored door
Mottura 89.K597DR - for DIERRE armored doors
Triple with half turn
Multi-system - with double-bit main lock and service key with European cylinder

The lower cylinder key controls the half turn and the upper key entry lock

Triple with half turn
Reversible half turn diam. 20mm extended (+10mm) operated by key, handle and cylinder
Key entry and handle  63mm
Latches diam. 18mm extended (+10mm)
Latch cord mm. 36
Rod projections mm. 24
Rod stroke mm. 20
Lock lever on the bolts
Lower lock with European cylinder with upper lock key lock
The lock is supplied with escutcheons and Quick Nucleus with 3 40mm keys supplied

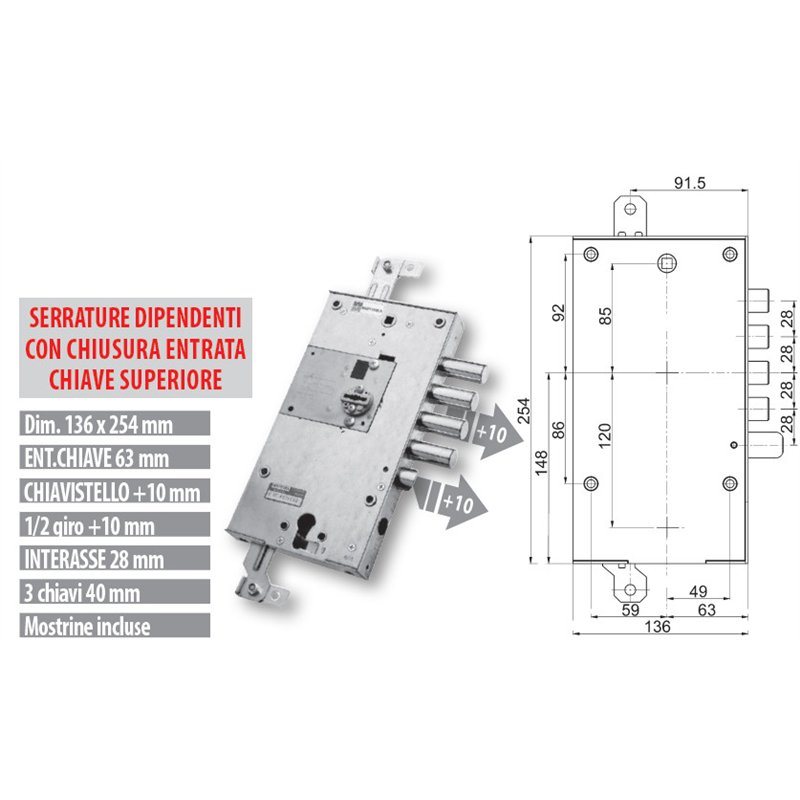

Box size 136x254
RIGHT hand version OR LEFT

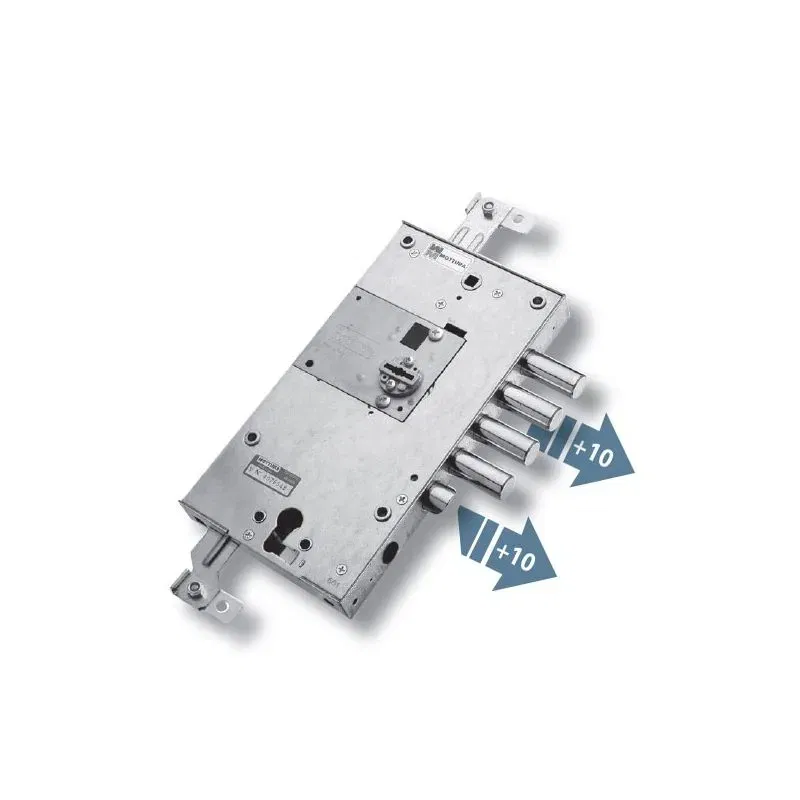

(the photo refers to the RIGHT version)

89K597/SB Version with double bitted key ANTIDECO DUE and NUCLEO QUICK.
The key change can be done without removing the lock

89K597/SM Version with double bitted key ANTIDECO DUE and NUCLEO QUICK MYKEY®.
The key change can be done without removing the lock.
The keys can only be duplicated at Mottura CLUB centers upon presentation of the original and ownership card

The lock is supplied WITHOUT European cylinder group and defender, to be purchased separately
