Floor spring MAB 7115 with 90° hold-open. Fixed EN 3 strength, for doors up to 100 kg.
Buy with confidence
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy
(edit with the Customer Reassurance module)

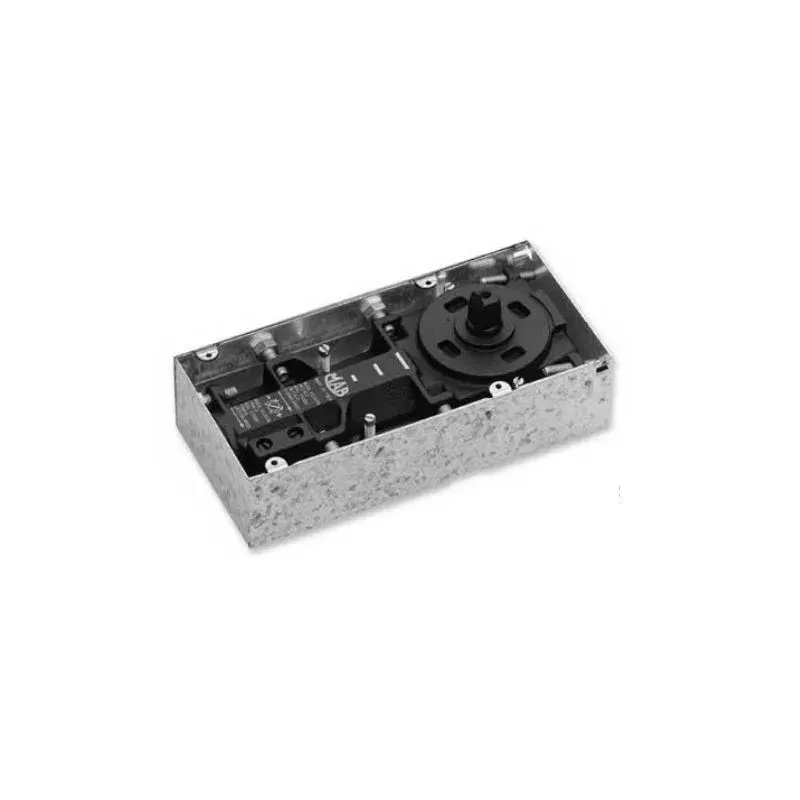

The MAB 7115 floor spring is designed for hinged and swing doors up to 950 mm wide and 100 kg in weight. Closing force is fixed at EN 3, compliant with EN 1154 standards. The 90° hold-open version allows the door to remain open at a stable angle, ideal for commercial and residential environments. The cast iron body and hot zinc-plated cement box ensure durability and long service life. Independent valves allow adjustment of closing speed and final latching. Not suitable for fire or smoke protection doors.
| Tipo | Floor spring door closer |
| Forza di chiusura | EN 3 (fixed) |
| Larghezza porta max | 950 mm |
| Peso porta max | 100 kg |
| Versione | With 90° hold-open |
| Angolo di apertura | Up to 180° (free rotation from 135° to 180°) |
| Velocità di chiusura | Adjustable 180°–15° |
| Colpo finale | Adjustable 15°–0° |
| Corpo | Cast iron |
| Cassetta a murare | Hot zinc-plated |

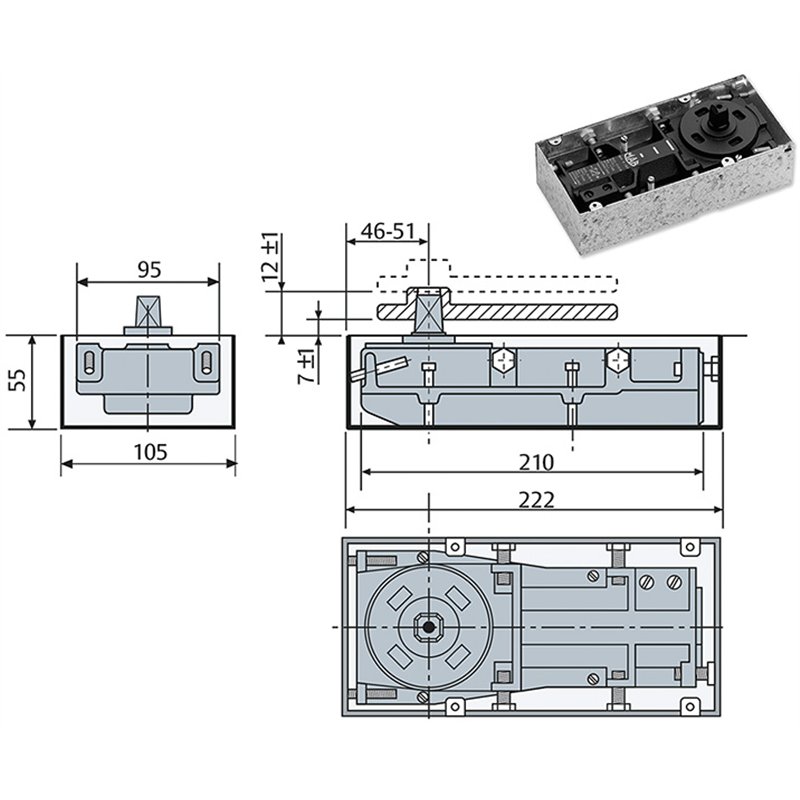

| Dimensioni (H × L × P) | 55 × 222 × 105 mm |
| Peso dispositivo | 3.6 kg |
| Certificazione | EN 1154, CE |
| Adatto a porte tagliafuoco/tagliafumo | No |
