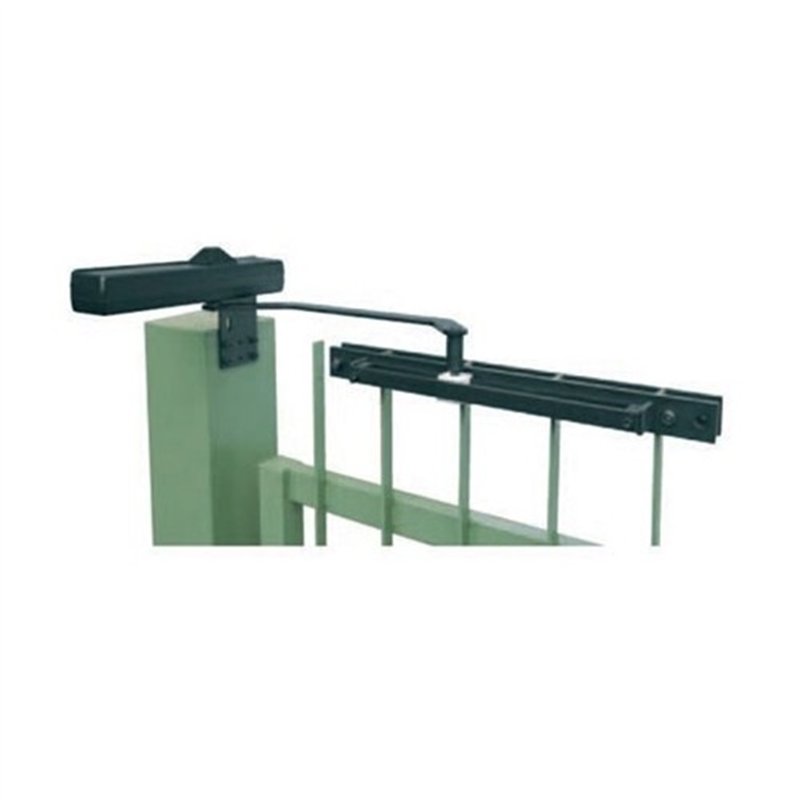

The ASSA ABLOY MAB DC680G is a rack-and-pinion gate closer with a pinch-free sliding arm, designed for non-paneled pedestrian gates from 600 to 1400 mm wide and up to 100 kg in weight.
Closing force is adjustable (EN 1–3) via mounting template, compliant with EN 1154 standards. Independent thermostatic valves allow adjustment of closing speed and final latching, ensuring consistent performance under varying weather conditions.
Installation is straightforward, with no welding required, thanks to supplied mounting plates and screws.
| Tipo | Rack-and-pinion gate closer |
| Forza di chiusura | Adjustable EN 1–3 |
| Larghezza cancello | 600–1400 mm |
| Peso cancello max | 100 kg |
| Tipo di cancello | Non-paneled pedestrian gate |
| Direzione apertura | Left/Right opening |
| Angolo di apertura | Up to 180° (gate design may limit) |
| Velocità di chiusura | Adjustable 180°–20° |
| Colpo finale | Adjustable 20°–0° |
| Braccio | Pinch-free sliding arm |
| Materiale corpo | Cast iron |
| Dimensioni (H × P × L) | 130 × 68.5 × 311 mm |
| Peso dispositivo | 7.9 kg |
| Resistenza corrosione | Yes |
| Certificazione | EN 1154, CE |
Reference: 708.0400695
