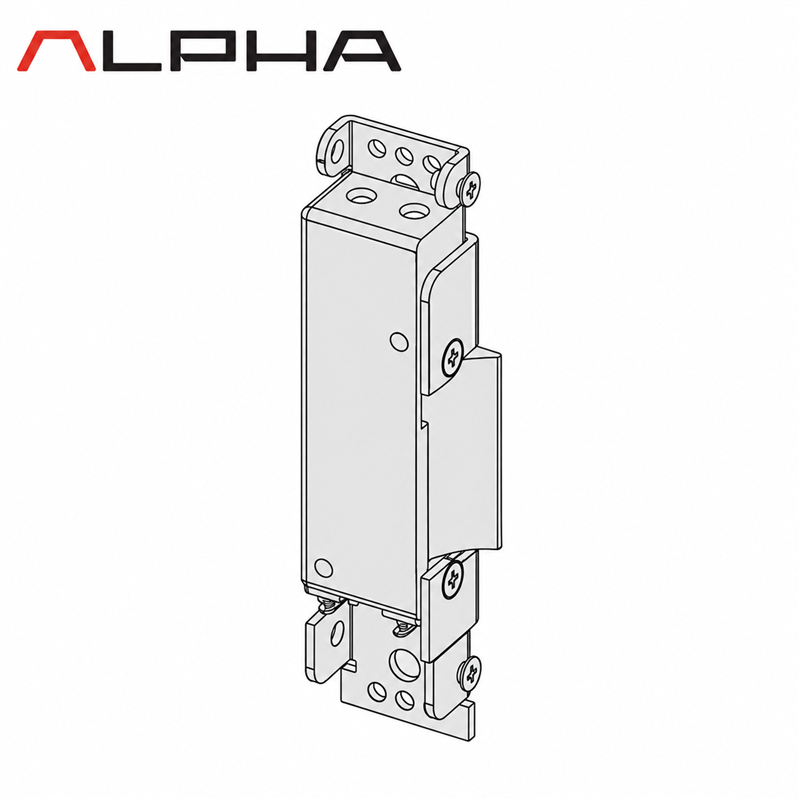

CISA ALPHA 07A83.90 electric strike for surface-mounted panic exit devices with lateral latch. 12V AC supply, mechanical hold-open function with electrical pulse release and automatic reset when the door closes. Supplied without cover, which must be ordered separately.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
The CISA ALPHA 07A83.90 electric strike is designed for electrically controlled access through doors equipped with surface-mounted panic exit devices and lateral latches. Its mechanical hold-open function enables release by an electrical pulse, followed by automatic resetting when the door closes.
Important: the electric strike module is supplied without its protective cover, which must be purchased separately.
| Manufacturer | CISA |
|---|---|
| Series | ALPHA |
| Product code | 07A83.90.0 |
| Product type | Electric strike for surface-mounted panic exit devices |
| Application | Panic exit devices with lateral latch |
| Operating function | Mechanical hold-open (anti-repeater) |
| Rated voltage | 12 V AC |
| Current consumption | 0.8 A |
| Handing | Non-handed |
| Reference overall dimensions | 144 x 37 x 43 mm |
| Catalogue unit weight | 0.634 kg |
| Protective cover | Not included |
| Compatible cover series | CISA 06A98.12 |
A 12 V AC electrical pulse releases the strike, allowing the door to open. The mechanical hold-open function maintains the release condition until the door is opened, and the strike automatically resets when the door closes.
This operation enables electrically controlled access without requiring the release button to remain pressed throughout the opening cycle.
The product includes the CISA 07A83.90 electric strike module. The protective cover is not supplied and must be ordered separately from the appropriate CISA 06A98.12 range.
Before installation, check compatibility with the panic exit device, lateral latch, door frame and electrical supply and control system.
For installation details and the correct assembly configuration, refer to the official CISA ALPHA technical documentation and the specific protective cover installation instructions.
