CISA panic exit device
FAST TOUCH series
59711.00.0FR (ex 59710.00) - for fire-rated locks
DESIGN RESEARCH
• The harmony between dimensions, lines and weight, due to an accurate
design research, makes "FAST TOUCH" adaptable to any environment.
• Clean line without protrusions, with lowered bar.
EASY INSTALLATION
• Special construction features, make "FAST TOUCH" simple and
quick to install, on wooden, iron and aluminum doors in
paired with mortise-type locks 43000 series.
RELIABILITY
• "FAST TOUCH" is made with quality materials and mechanisms
reliable operation to ensure efficiency and durability
time.
CERTIFICATIONS AND MARKINGS
• The materials and technical solutions adopted allow compliance
of the most stringent requirements of the standards, this has allowed to
CISA to obtain brands and certifications including:
- CE marking according to DIRECTIVE 89/106 / EEC issued
from AENOR:
- Certification of a voluntary product issued by a third party
ICIM provided by the same UNI EN 1125 standard.
• All CISA handles of the "SBLOCK" series starting from March
2003 are CE marked and are ICIM certified.
• The CE marking certifies the handle closing system
panic coupled with CISA locks, as expressly
indicated in the certificates and instructions supplied with the handle.
Technical features
• Carter in painted aluminum / aluminum alloy.
• Bar in painted aluminum that can be shortened up to 300
mm, on all models
• Internal components in galvanized steel, suitable for doors
fire.
Standard configuration operation
• From the inside: by pressing the bar
• From the outside: with key and / or handle
• To be combined with:
- Sicur Panic, Mito Panic, Sikurexit, HeavyDuty, Ninz series locks
Framework 9 mm ambidextrous
-> For doors up to 1200 mm
• ON DEMAND:
- External handle
- Oval Bar

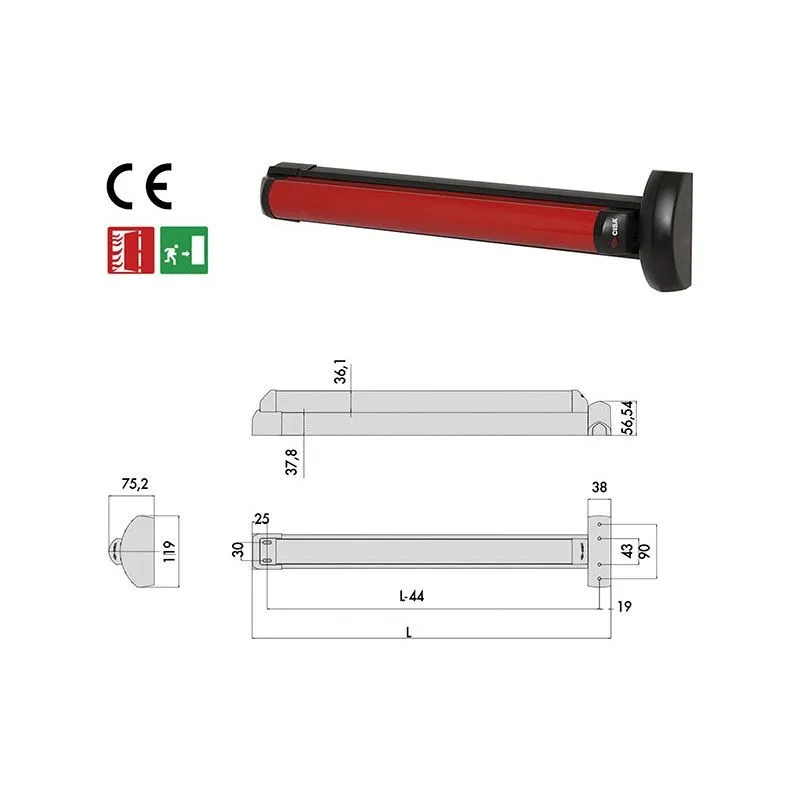

Disegni e quote: clicca qui
