Colombo Design DUE CC313 – Brass Lift-and-Slide Door Handle | Mood Collection

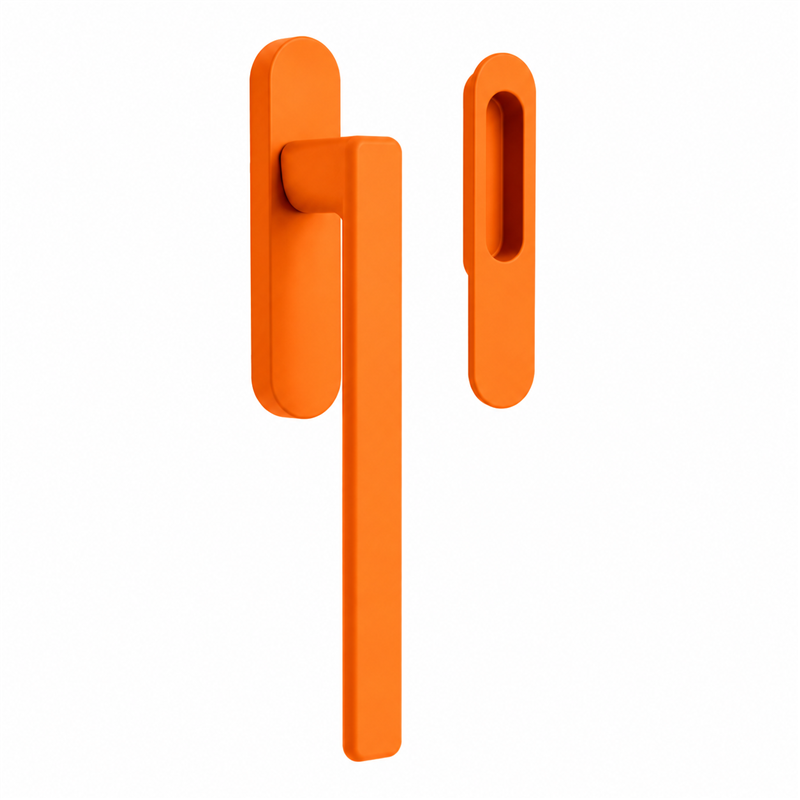

The Colombo Design CC313 is a brass operating handle for lift-and-slide door systems from the Mood Collection, designed by Studio Pang. Its geometric vertical grip coordinates with the DUE and DUE Q ranges. Two versions are offered, with rounded or square mounting supports, in twelve Mood colours.
DUE and DUE Q configurations
The Colombo Design catalogue specifies two configurations:
- DUE CC313: rounded mounting supports, 65 mm projection shown in the technical drawing and a 10 × 10 × 95 mm operating spindle.
- DUE Q CC313 Q: square mounting supports, 67.5 mm projection and a 10 × 10 × 145 mm operating spindle.
Both versions share the same handle design but differ in mounting geometry and spindle specifications. The appropriate configuration must be selected according to the lift-and-slide mechanism and door construction.
Dimensions and technical specifications
| Specification | DUE CC313 | DUE Q CC313 Q |
|---|
| Manufacturer | Colombo Design |
|---|
| Collection | Mood Collection |
|---|
| Designer | Studio Pang |
|---|
| Product type | Lift-and-slide door operating handle |
|---|
| Material | Brass |
|---|
| Mounting supports | Rounded | Square |
|---|
| Overall height | 290 mm | 290 mm |
|---|
| Front width shown | 34 mm | 34 mm |
|---|
| Vertical support dimension | 153 mm | 153 mm |
|---|
| Projection shown in drawing | 65 mm | 67.5 mm |
|---|
| Operating spindle | 10 × 10 × 95 mm | 10 × 10 × 145 mm |
|---|
| Door thickness specified | 80 mm | 87 mm |
|---|
| Colour finishes | 12 Mood colours, C01–C12 |
|---|
| Origin | Made in Italy |
|---|
Mood Collection colours
The DUE CC313 can be ordered in twelve finishes: White, Black, Bronze, Silver, Titan, Ocean Blue, Strawberry Red, Sunset Orange, Lemon Yellow, Claret Violet, Lime Green and Capri Blue.
The colour range allows the lift-and-slide handle to coordinate with DUE and DUE Q architectural hardware or provide a contrasting detail against the sliding door frame.
Important – Check the selected configurationSelect the rounded or square mounting version and check spindle dimensions, door thickness and compatibility with the installed lift-and-slide mechanism. The complete contents of the supplied kit and any additional components should be confirmed before ordering. Contact Matteoda customer service for technical assistance and estimated ordering lead times.
