MOTORIZATION FOR SHUTTERS

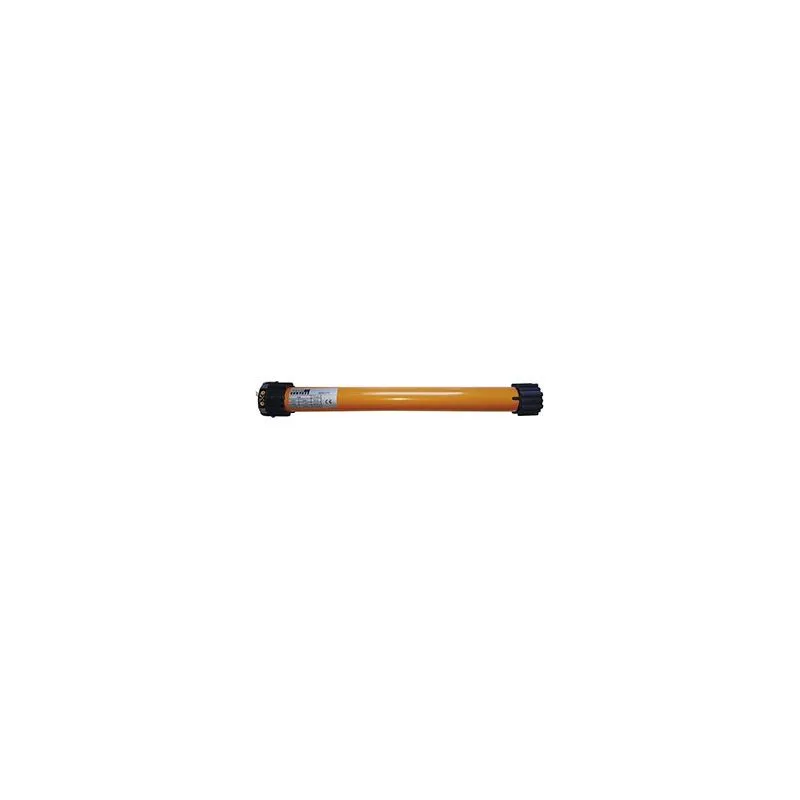

ROLLER - KOMPASS KO30 / 17
Easy to install motor suitable for rolling shutters.
It fits into the octagonal roller with a 60mm section (recommended with a thickness of 8/10)
The coupling system allows the motor to be placed with a click of the support on the motor head.
Complete with adapter and support
Mechanical motor limit switch, without emergency operation
torque 30 NM
Capacity 50 kg.
Speed 17 RPM
turns at the end of the stroke: 16
diameter mm.45
length mm.570
cable length 3 meters
3 year warranty
Reference: 708.303286
Brand: El-Ga Distribuzione
