Security lock for armored door
MOTTURA 3DKEY® 3D.515 compatible CISA

3DKEY® is a very high security gear lock for armored doors.
It is compatible for dimensions and fixings with the main locks for armored doors with box dimensions as shown below.
3DKEY® surpasses in safety the current standard guaranteed by European cylinder locks by adding the exclusivity of a patented interchangeable core and the possibility of being able to carry out particular cuts such as the key with Armo and Riarmo (master + service), construction site key or system Various (available to order - contact our sales department for more information)

Triple with half turn operated by key and handle follower
Backset of key mm.64
With gears
4 bolts diam.18mm center distance 28mm (version 3 bolts center distance 37mm)
Half round diam.19mm reversible
Internal closure with KEY
Stroke 20 mm
Bolt stroke 28 mm
Steplight series
RIGHT OR LEFT hand version

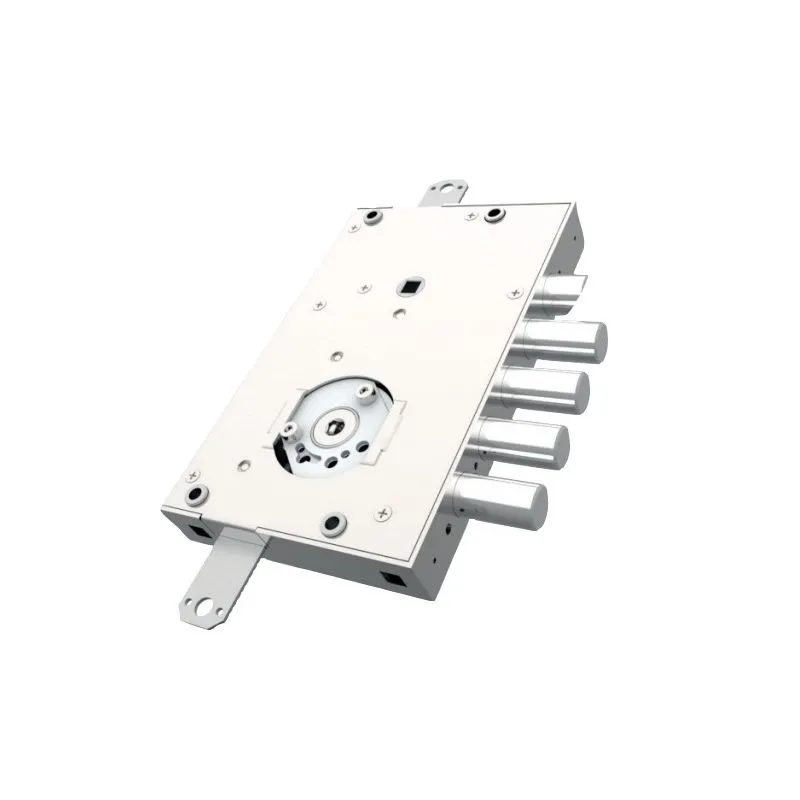

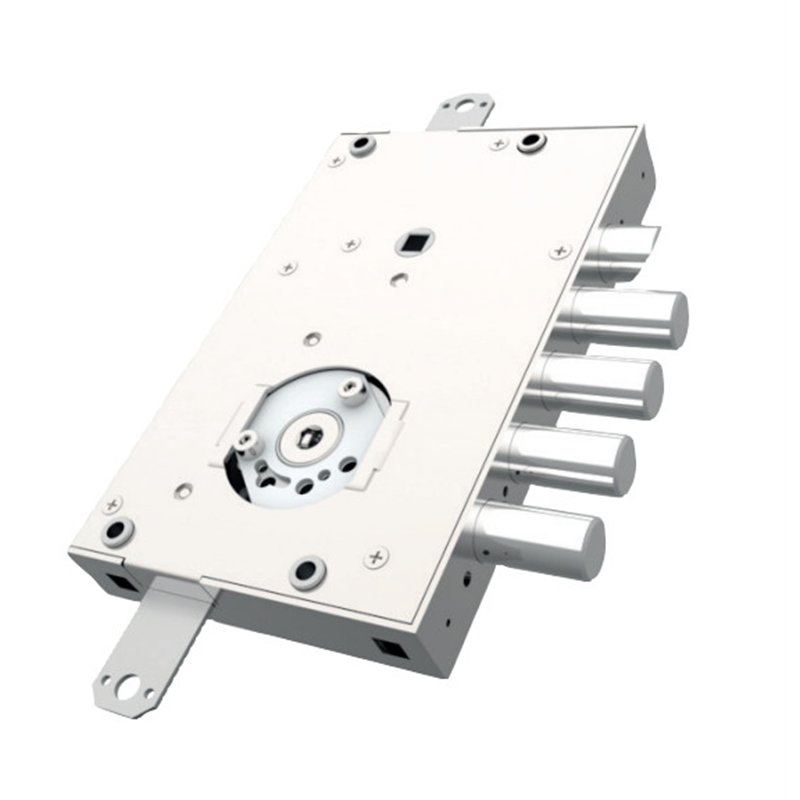

(the photo refers to the RIGHT version)
