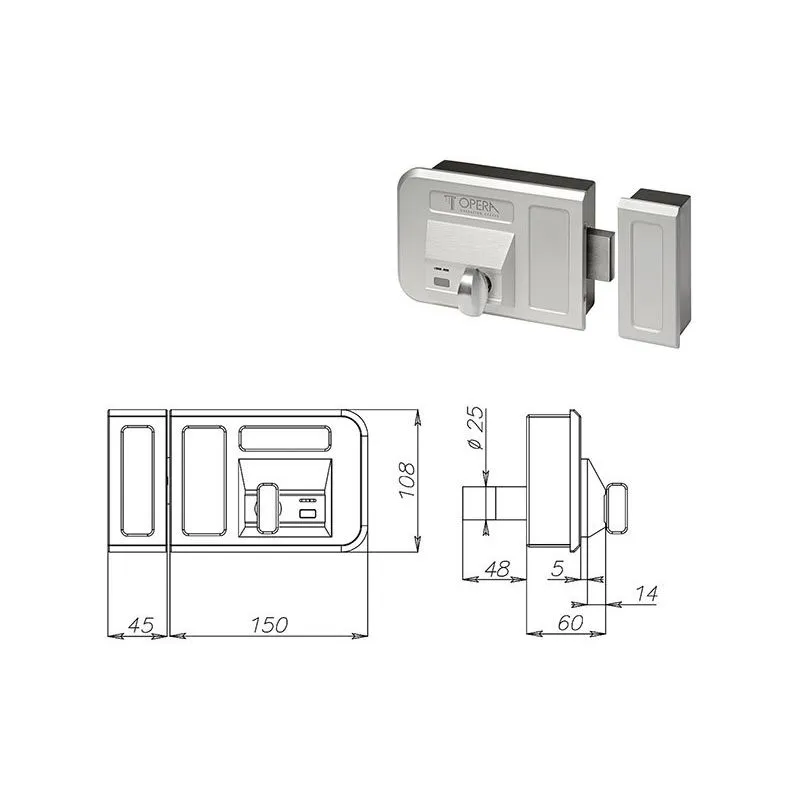

MOTORIZED LOCK OPERA 28002
FOR GATES WITH AUTOMATIC CLOSING

OPERA locks for motorized gates guarantee the safety of closing doors and gates.
They are in fact equipped with an electronically controlled mechanism which, by means of a special sensor, triggers the closure of the lock when the door is approached.
Unlike conventional electric locks, it does not require the mechanical closing action for the spring load which in many cases can fail, leaving the window open.
The operation of the motorized lock is extremely silent
OPERA locks are also designed and built for the most extreme outdoor use thanks to the stainless steel body and the heating device of the mechanisms which intervenes with external temperatures below 5 ° C

The lock is operated by a standard round cylinder not supplied

• Stainless steel deadbolt, dimensions 18 x 28 mm (stroke 25 mm)
• Anti-burglary device of the deadbolt in the closed position
• Power supply: 12/24 Vac / dc - Absorbed current 1.2 A inrush, 100 mA for maintenance
• Hall effect sensor for the position of the door
• Selectable reclosing timing 5 - 60 sec.
• Two-color red / green led to signal the open / closed deadbolt status
• Blue LED in the lower position for night indication in the closed position and white in the open position to illuminate the ground
