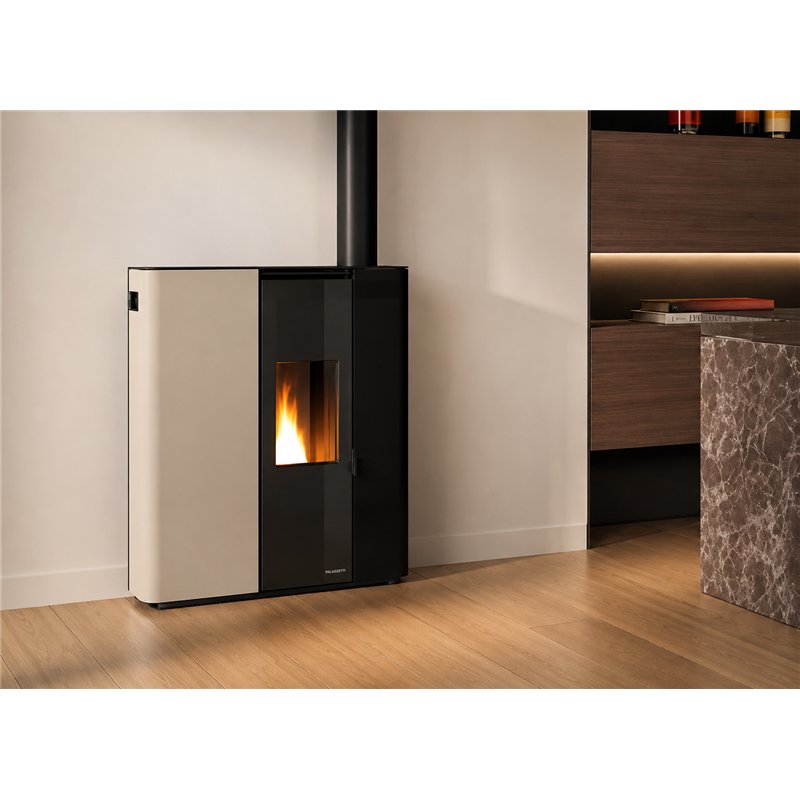

Palazzetti Ecofire Scarlet Lux TC 9 US is a 9 kW slim sealed pellet stove, only 29 cm deep, combining the refined Lux design with an integrated top coaxial flue and combustion-air connection. It features a glass door, Zero Speed Fan, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start. Optional Pro2 hot-air ducting, Universal Gateway compatibility, CC50 sealed combustion, A+ energy class and Italian 5-star environmental rating.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Palazzetti Ecofire Scarlet Lux TC 9 US is a 9 kW slim sealed pellet stove designed to provide substantial heating output while requiring very little installation depth.
At only 29 cm deep, it can be installed flush against a wall, making it particularly suitable for corridors, passage areas and narrow living spaces.
The Lux version features a more refined exterior with a glass door and glossy black right side, while the US – Upper Smoke configuration provides a top coaxial flue and combustion-air connection.
Scarlet Lux combines the space-saving structure of the Scarlet range with a more sophisticated exterior.
The glass door provides a cleaner contemporary appearance, while the glossy black right side adds a distinctive design element.
The US – Upper Smoke configuration is designed for a top flue connection.
The coaxial system combines flue-gas evacuation and combustion-air intake in the same installation arrangement.
The connection uses an Ø80/130 mm configuration, with Ø80 mm for flue gases and the outer Ø130 mm section for combustion-air intake.
Scarlet Lux TC 9 US is specifically designed as a space-saving pellet stove.
Its depth of only 29 cm, combined with flush-to-wall installation and the top coaxial connection, helps minimise its total installation footprint.
Scarlet Lux TC 9 US is a CC50 certified sealed pellet stove.
CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation.
The variable-speed room-air fan features Zero Speed Fan, allowing forced ventilation to be completely disabled under the operating conditions specified by Palazzetti.
Scarlet Lux TC 9 US can be equipped with the optional Pro2 ducting kit.
Warm air can be distributed to another room through an Ø80 mm duct, with either a top or rear connection.
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.
The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.
Quick Start is designed to reduce pellet ignition time and help the stove reach operating conditions more quickly.
Scarlet Lux TC 9 US is compatible with the optional Universal Gateway, allowing integration with Palazzetti's connected ecosystem and compatible smartphone control functions.
Scarlet Lux TC 9 US delivers 9 kW nominal heat output.
Nominal efficiency is approximately 89%.
Pellet consumption ranges from approximately 0.63 to 2.06 kg/h, while the hopper has a capacity of 20 kg.
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Scarlet Lux TC 9 US |
| Type | Slim sealed ventilated pellet stove |
| Version | US – Upper Smoke |
| Fuel | Pellet |
| Nominal heat output | 9 kW |
| Minimum heat output | 2.8 kW |
| Nominal efficiency | 89% |
| Pellet consumption | 0.63 - 2.06 kg/h |
| Pellet hopper capacity | 20 kg |
| Flue gas temperature at nominal output | 252 °C |
| Flue gas flow at nominal output | 5.2 g/s |
| CO at nominal output, 13% O₂ | 100 mg/Nm³ |
| Dust at nominal output, 13% O₂ | 5 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Top coaxial connection | Ø80/130 mm flue + combustion air |
| Required chimney draught | 12 Pa (±2) |
| Width | 89 cm |
| Depth | 29 cm |
| Height | 104 cm |
| Weight | 125 kg |
| Cladding | Painted steel and glass |
| Right side | Glossy black |
| Zero Speed Fan | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Balanced Door | Yes |
| Optional hot-air ducting | Pro2, Ø80 mm |
| Duct position | Top or rear |
| Universal Gateway | Optional / pre-arranged |
| Sealed combustion | Yes |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Scarlet Lux TC 9 US is designed for an Ø80/130 mm top coaxial connection, combining flue-gas evacuation and combustion-air intake.
Dedicated Palazzetti coaxial adapters are available according to the required installation configuration.
The chimney system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
