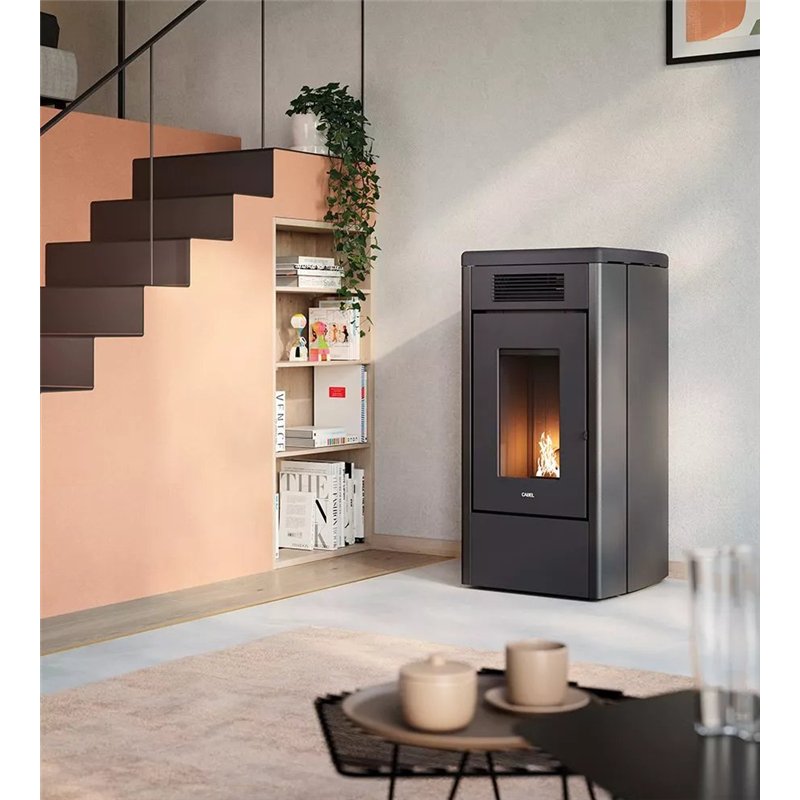

Cadel Atena Plus 12: 12 kW ductable pellet stove

Cadel Atena Plus 12 is a 12 kW ductable pellet stove designed to provide effective multi-room heating through an advanced hot-air distribution system.

The stove features independent dual rear or top ducting, allowing heat to be distributed to different areas of the home with greater flexibility.

ZoneControl technology makes it possible to set different temperatures in each heated room through independent thermostats, improving comfort and allowing more efficient use of the heat produced.

Why choose Cadel Atena Plus 12

• 12 kW nominal heat output.
• Independent dual hot-air ducting.
• Rear or top ducting configuration.
• ZoneControl for different temperatures in individual rooms.
• Front ventilation for the main room.
• Flexit installation technology.
• Integrated Wi-Fi and Bluetooth.
• Easy Connect Plus app programming.
• 23 kg pellet hopper.
• A+ energy class.

ZoneControl: different temperatures in different rooms

One of the key features of Atena Plus 12 is ZoneControl technology, designed to provide more accurate control of ducted heating.

Independent thermostats make it possible to set different temperatures in the rooms served by the stove. The ducting fans can therefore be managed according to the actual heating requirements of each area.

This helps improve comfort and reduces unnecessary overheating in rooms that have already reached the desired temperature.

Independent dual ducting

Cadel Atena Plus 12 features dual hot-air ducting that can be configured at the rear or at the top.

The two ducting circuits can be managed independently, making the stove particularly suitable for homes where several rooms have different heating requirements.

The hot-air duct connections have a diameter of Ø 80 mm.

Front ventilation for the main room

In addition to the ducting system, Atena Plus 12 uses front ventilation to distribute warm air directly into the room where the stove is installed.

This configuration allows the main room and the additional ducted areas to be heated at the same time.

Flexit installation technology

Flexit technology is designed to provide greater freedom when configuring the stove installation.

Rear or top ducting options make it easier to adapt the stove to the layout of the property and heating system.

Wi-Fi, Bluetooth and Easy Connect Plus

Cadel Atena Plus 12 features integrated Wi-Fi and Bluetooth and can be programmed using the Easy Connect Plus app.

The main stove functions can be managed from a smartphone, including ignition, shutdown, operating schedules and desired temperature settings.

How much space can Cadel Atena Plus 12 heat?

Indicative technical data refer to a heating capacity of approximately 105 m² / 342 m³.

The actual area and volume that can be heated depend on building insulation, climate zone, room height, exposure and actual heat loss. Correct stove sizing should therefore always be based on the characteristics of the property.

Cadel Atena Plus 12 technical specifications

Installation and ducting

Cadel Atena Plus 12 uses an Ø 80 mm flue outlet, an Ø 60 mm combustion air inlet and Ø 80 mm hot-air duct connections.

The dual ducting can be configured at the rear or at the top, providing considerable freedom when adapting the stove to the heating system.

Installation must be carried out by qualified personnel in accordance with current regulations, the manufacturer's instructions and the characteristics of the chimney system.
