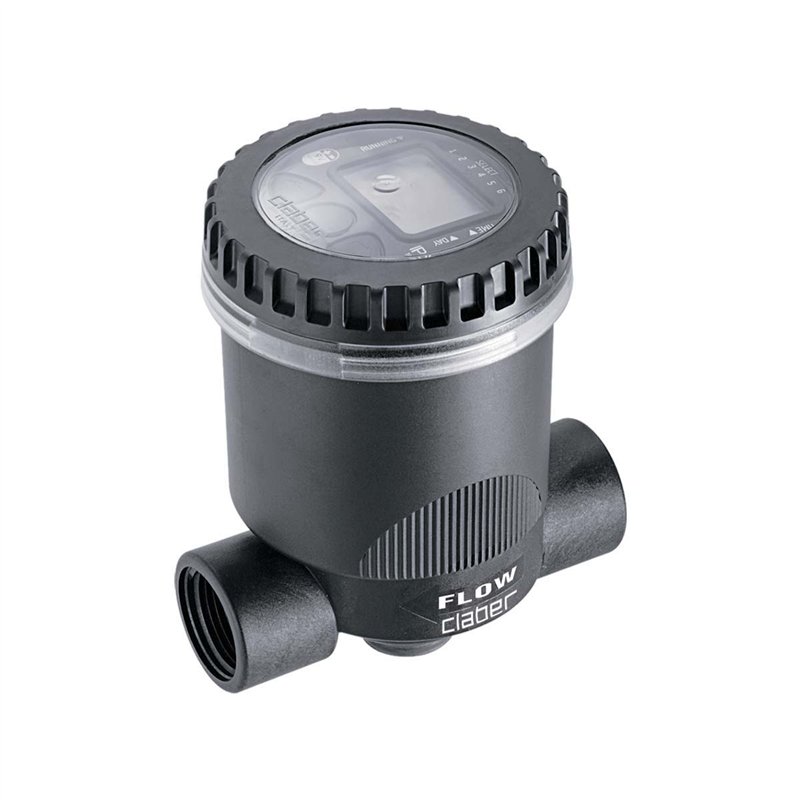

Claber 90826 programmable solenoid valve for irrigation

1" PROGRAMMABLE SOLENOID VALVE FOR IRRIGATION
CLABER 90826

Can be installed directly on the tap or on a water intake in the cockpit. Protected by a perfectly watertight lid, it also works in total immersion. Easy to program with just three buttons. Irrigation times from 1 minute to 23 hours and 59 minutes with the possibility of carrying out up to 6 irrigation cycles per day. Manual and weekly programming with exclusion of the days of the week. Low energy consumption 9V bistable solenoid. It runs on a 9V alkaline battery sufficient for an entire season. The electronic part can be separated from the hydraulic part for convenient programming or for storage during the winter. Operating pressure from 0.5 to 12 bar. 1" F (26-34 mm) inlet and outlet thread. Flow rate from 4.6 to 96 litres/minute. Operating temperature from +5° to +70°.

Inlet thread diameter: 1"
Outlet thread diameter: 1"
Pressure (of use): 0.5 - 12 bar
Power supply voltage: 9V
Releases: 1
Programs: 6
Program type: customizable
Max watering frequency: 6 per day
Min watering duration: 00:01′
Max watering duration: 11.59′
Rain sensor: no
Power supply: 1x9V
Warranty (years): 3
