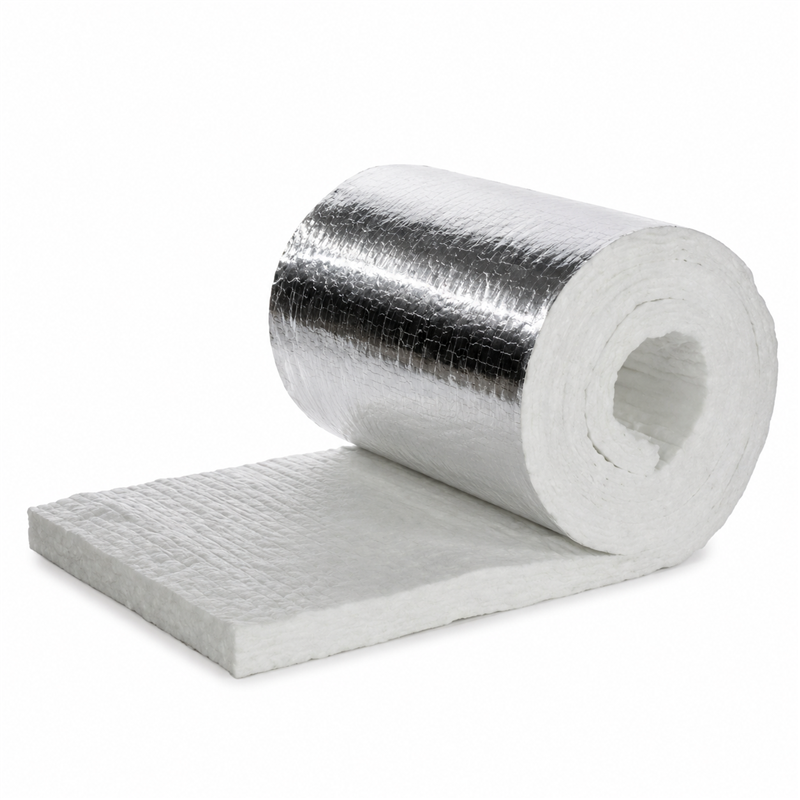

De Marinis FIBROCERALU aluminium-faced ceramic fibre insulation 60 cm high

De Marinis FIBROCERALU is a flexible ceramic mineral fibre insulation material with an external aluminium facing, designed for thermal insulation of chimneys, flue pipes and compatible components.

The insulation has a fixed height of 60 cm and is sold per linear metre.

Therefore:

• 1 unit = 1 metre length × 0.60 m height;
• 2 units = 2 metres length × 0.60 m height;
• 5 units = 5 metres length × 0.60 m height.

Each unit therefore corresponds to approximately 0.60 m² of insulation material.

FIBROCERALU is specified as heat resistant up to 1000°C.

Main features

• Manufacturer: De Marinis
• Code: FIBROCERALU
• Type: flexible flue insulation
• Material: ceramic mineral fibre
• Facing: aluminium
• Height: 60 cm
• Sales unit: linear metre
• Size per unit: 1.00 × 0.60 m
• Nominal area per unit: 0.60 m²
• Heat resistance: up to 1000°C

How the product is sold

FIBROCERALU is sold per linear metre with a fixed height of 60 cm.

Ordering information: quantity 1 corresponds to 1 linear metre of insulation, 60 cm high. Increasing the quantity increases the supplied length while the height remains fixed at 60 cm.

Applications

The flexible material can be cut and shaped around:

• flue pipes;
• elbows;
• tees and fittings;
• connections;
• irregularly shaped components;
• custom insulation applications.

High-temperature ceramic mineral fibre

The insulation is made from ceramic mineral fibre and is specified as heat resistant up to 1000°C.

Important: this temperature refers to the insulation material itself. Adding FIBROCERALU does not automatically change the certified temperature class, combustible clearance or certification of the complete flue system.

FIBROCERALU versus FIBROCER

• FIBROCERALU: ceramic mineral fibre with aluminium facing;
• FIBROCER: ceramic mineral fibre without aluminium facing.

FIBROCERALU versus COPCER

• FIBROCERALU: flexible insulation, 60 cm high, sold per linear metre and cut to suit the installation;
• COPCER: preformed cylindrical insulation section available in specific nominal diameters.

Technical data

Installation

FIBROCERALU can be cut and shaped according to the surface being insulated and should be installed continuously and evenly around the component.

Its use must be compatible with flue-gas temperature, flue construction and the overall chimney design.

For wall and floor penetrations, technical shafts or installations close to combustible materials, the certification and installation requirements of the complete flue system must always be followed.
