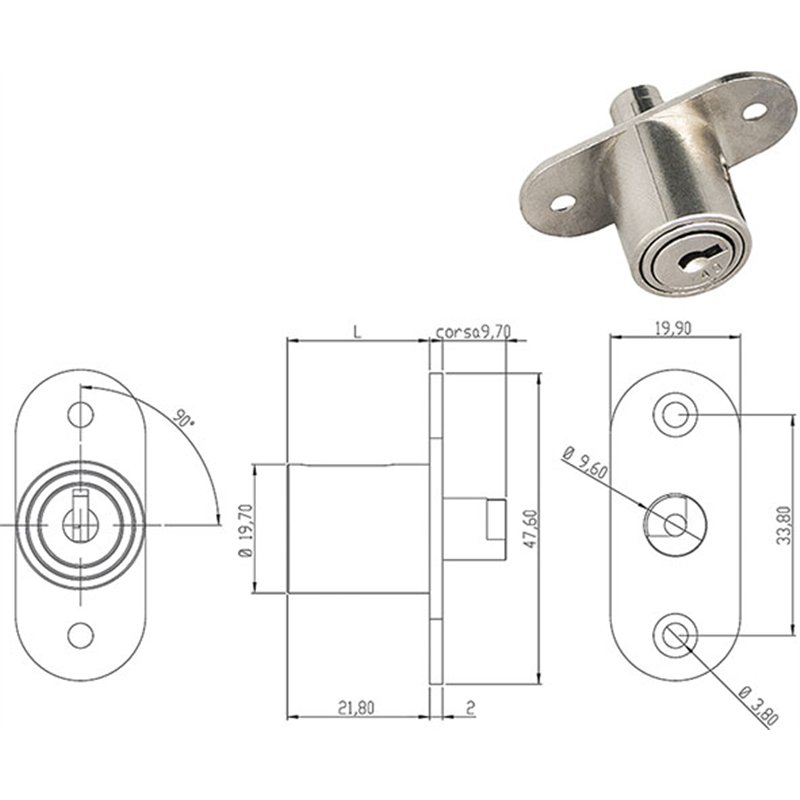

OMR – LE‑SCO push‑button lock for sliding doors 163500
OMR 163500 LE‑SCO push‑button lock with double‑wing design, wafer mechanism and 10 mm stroke pin. Suitable for sliding wooden, metal and glass doors.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
The OMR 163500 is a LE‑SCO push‑button lock with a double‑wing body, designed for sliding doors and frequently accessed panels. The die‑cast nickel‑plated body houses a wafer‑based cylinder, ensuring precise and secure locking.
The push‑button is not automatic:
the key is required for both locking and unlocking
the button provides quick manual opening
The rear pin features a 10 mm stroke and can be equipped with a cam or extension pin. With the addition of a spacer and oval escutcheon, the lock can also be installed on glass panels.
Typical applications include: school furniture, exhibition setups, display cabinets, libraries, gaming machines, and filing systems.
| Brand | OMR |
| Code | 163500 |
| Type | LE‑SCO push‑button lock |
| Application | Sliding doors |
| Material | Die‑cast metal |
| Internal mechanism | Wafer mechanism |
| Key type | Coded key |
| Keying | KD, KA, Master key |
| Hole diameter | 20 mm |
| Body length | 21 / 27 mm |
| Pin stroke | 10 mm (variants: 10, 7, 6.8 mm) |
| Key extraction | Locked and unlocked |
| Closure | Hook cam / Through pin |
| Automatic | No – key required for locking |
| Rotation | 90° clockwise |
| Finish | Nickel‑plated |
| Fixing | Rivets / Screws |
| Lock type | Lever lock, push‑button lock |
| Panel material | Wood, MDF, HPL, metal, aluminium, glass |
