OMR – LE‑BAT 180 cam lock Ø19 L30 163425
OMR 163425 LE‑BAT 180 cam lock, Ø19 mm, 30 mm body, 180° rotation and coded key. Suitable for wooden and metal hinged doors.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description

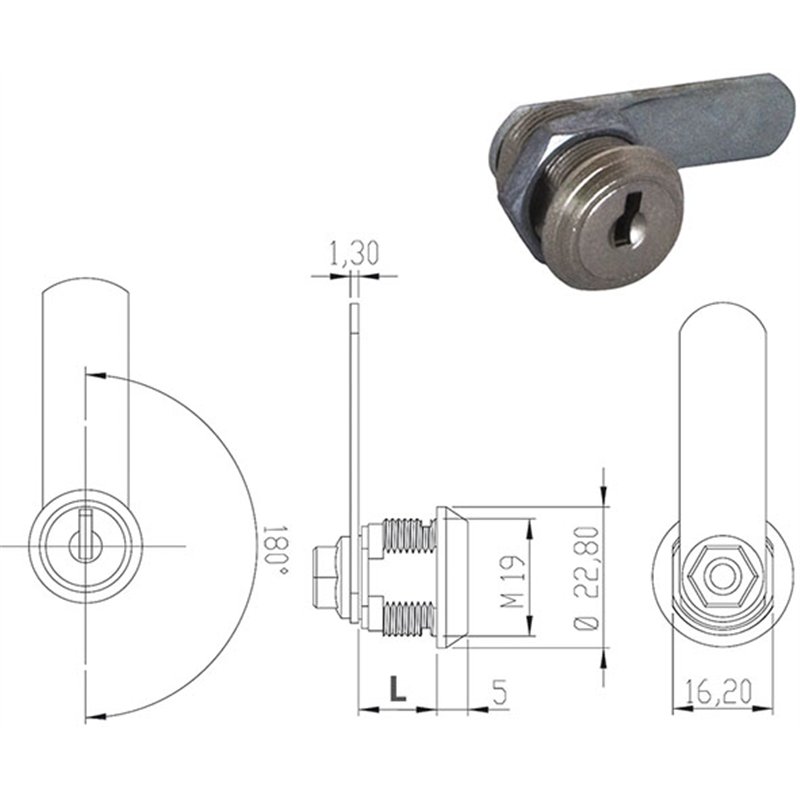

The OMR 163425 is a LE‑BAT 180 universal cam lock featuring a 19 mm diameter and a 30 mm body length, ideal for thicker panels or deeper installations.
The nickel‑plated die‑cast body houses a 5‑wafer cylinder, ensuring secure and reliable locking. The 180° rotation allows wide‑angle opening, while the 7 mm square drive supports the full range of OMR cams (straight, bent, hook, rocker, etc.).
Supplied with two coded keys, it is suitable for wooden furniture, metal cabinets, technical enclosures and industrial panels.
| Brand | OMR |
| Code | 163425 |
| Type | LE‑BAT 180 cam lock |
| Application | Hinged doors, wooden furniture, metal cabinets |
| Material | Nickel‑plated die‑cast metal |
| Internal mechanism | Wafer mechanism |
| Key type | Coded key |
| Keying | KD |
| Hole diameter | 19 mm |
| Body length | 30 mm |
| Key extraction | Locked and unlocked |
| Rotation | 180° |
| Finish | Nickel‑plated |
| Fixing | Nut |
| Cam drive | 7 mm square |
| Supplied equipment | Lock + 2 coded keys |
Product Details
