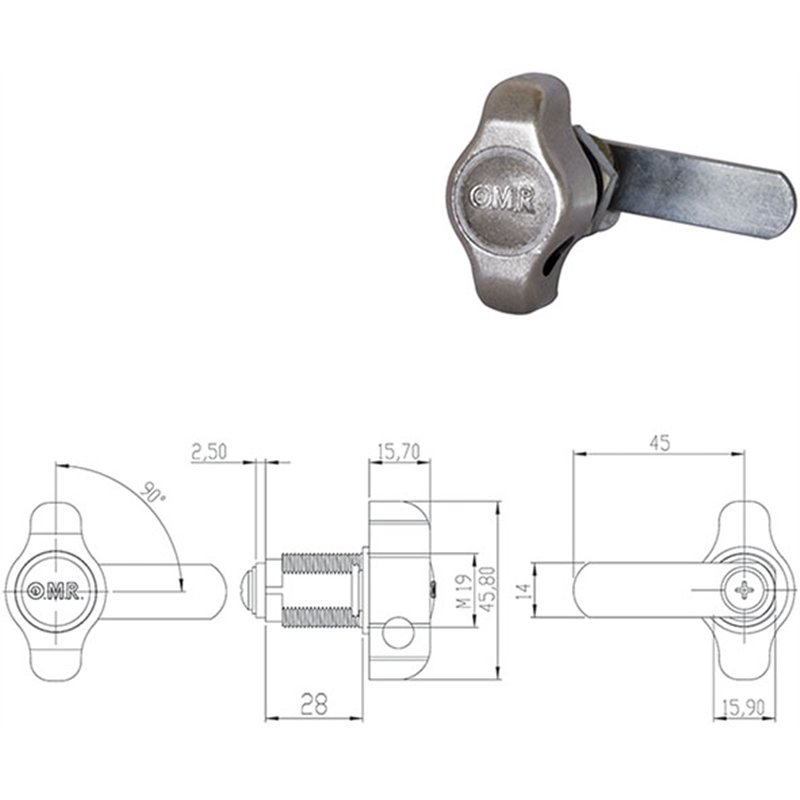

OMR – Lockable handle polished SX Ø19 165645
OMR 165645 polished lockable handle, left‑hand version, for 30–40 mm padlocks. Suitable for hinged wooden or metal doors.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
The OMR 165645 is a left‑hand (SX) lockable handle made of polished nickel‑plated zinc alloy. It is designed for use with 30–40 mm hook padlocks (shackle Ø 5–7 mm). The handle operates the rear cam or rod system; once the padlock is inserted, the handle is blocked in the closed position, preventing rotation.
The 7 mm square drive supports straight, bent, hook cams and rod‑control levers. Suitable for lockers, community furniture, hospitals, gyms, spas, hostels and technical enclosures.
| Brand | OMR |
| Code | 165645 |
| Type | Lockable handle SX |
| Orientation | Left (SX) |
| Application | Hinged doors |
| Material | Nickel‑plated die‑cast metal |
| Internal mechanism | Free‑rotor (no wafers) |
| Key type | Padlock (not included) |
| Padlock compatibility | 30–40 mm hook, shackle Ø 5–7 mm |
| Hole diameter | 19 mm |
| Body lengths | 10 – 25 – 28 mm |
| Square drive | 7 mm |
| Rotation | 90° counter‑clockwise |
| Finish | Polished nickel |
| Fixing | Nut |
| Panel material | Wood, MDF, HPL, metal, aluminium |
| Supplied equipment | Handle + nut |
