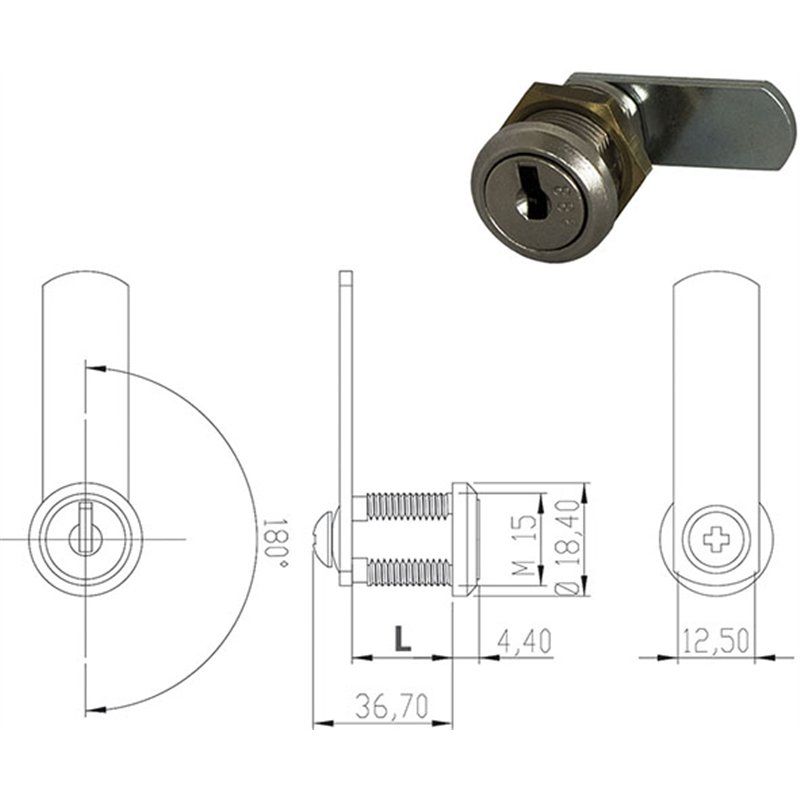

OMR – Mini LE‑180 cam lock Ø15 L30 163418
Mini OMR 163418 cam lock, Ø15 mm, 30 mm body, 180° rotation, wafer mechanism and 7 mm square drive. Suitable for thicker doors, drawers and cabinets.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
The OMR 163418 is a mini universal cam lock with a 5‑wafer mechanism, designed for compact installations requiring a longer body (30 mm). The double‑D body prevents rotation in the panel, while the 7 mm square drive supports straight, bent, hook cams and rod‑control levers.
The fully threaded body allows nut fixing or quick‑mount clip installation. Available in nickel‑plated or black finish, and also in waterproof or technopolymer versions.
| Brand | OMR |
| Code | 163418 |
| Type | Mini universal cam lock |
| Application | Hinged doors, drawers, cabinets |
| Material | Die‑cast metal |
| Internal mechanism | Wafer mechanism |
| Key type | Coded key |
| Keying | KD |
| Hole diameter | 15 mm |
| Body length | 30 mm |
| Key extraction | Locked and unlocked |
| Rotation | 180° |
| Finish | Black or nickel‑plated |
| Fixing | Nut / quick‑fix clip |
| Square drive | 7 mm |
| Door thickness | 0.5–27 mm (depending on version) |
| Supplied equipment | Lock + 2 keys |
