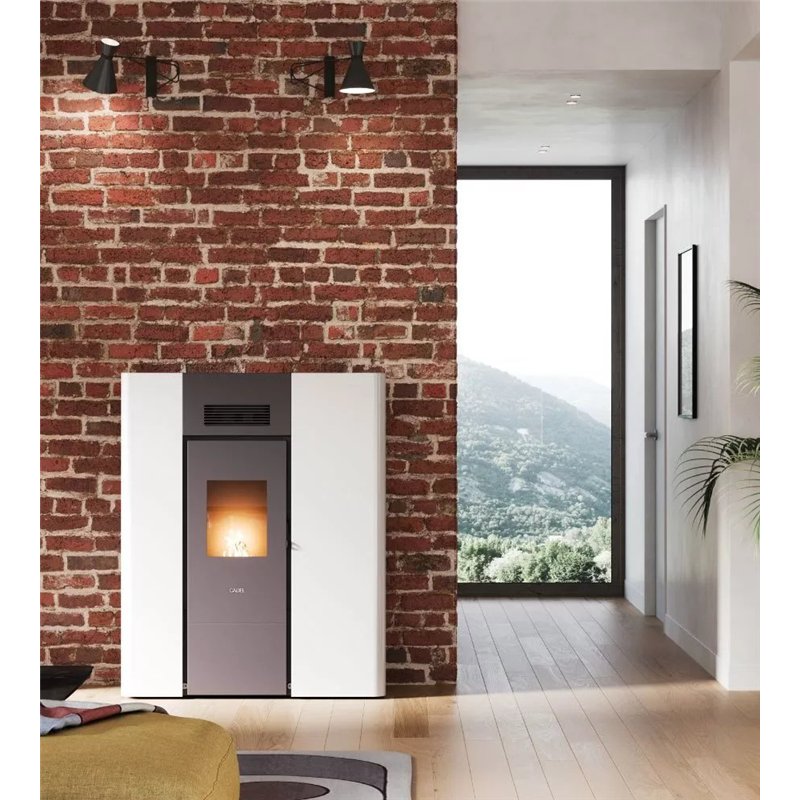

Cadel Maya Idro 18 is a slim 18 kW ventilated hydro pellet stove designed for restricted spaces, corridors and passage areas. It delivers 13.2 kW nominal useful water output and features up to 94% efficiency, a 26 kg pellet hopper, integrated Wi-Fi and Bluetooth, GoFast rapid ignition, an included hydraulic kit and top or rear flue outlet. Italian 5-star D.M. 186 environmental rating.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Cadel Maya Idro 18 is a slim 18 kW ventilated hydro pellet stove designed to supply a domestic heating system while taking up relatively little depth.
Its slim format makes it particularly suitable for corridors, passage areas and rooms where installation space is limited.
Maya Idro 18 delivers 13.2 kW nominal useful water output and features integrated Wi-Fi and Bluetooth, GoFast rapid ignition, an included hydraulic kit, temperature sensors and daily and weekly programming.
One of the main advantages of Maya Idro 18 is its slim construction, designed to simplify installation where available depth is limited.
Cadel specifically presents the model as suitable for corridors and passage areas, making it an interesting solution when a conventional hydro pellet stove would occupy too much usable room space.
Maya Idro 18 transfers a significant proportion of the energy generated by pellet combustion to the water circulating through the domestic heating system.
At nominal operation, 13.2 kW of useful heat is transferred to the water, while reduced useful water output is 3.1 kW.
The appliance can therefore supply radiators and other compatible hydronic heating terminals when the system is correctly sized.
Maya Idro 18 is also a ventilated hydro stove, meaning that part of the available heat is released directly into the room in which the appliance is installed.
Cadel Maya Idro 18 is supplied with an integrated hydraulic kit, helping simplify connection to the domestic heating system.
The hydraulic layout must nevertheless be designed and checked by qualified personnel according to the characteristics of the property and existing installation.
Maya Idro 18 features integrated Wi-Fi and Bluetooth connectivity, allowing compatible Cadel systems to manage operating schedules, temperatures and main stove functions more flexibly.
GoFast technology is designed to speed up pellet ignition and reduce the time required for the appliance to reach operating conditions.
The stove offers daily and weekly programming together with an external thermostat connection, allowing more flexible integration with household heating requirements.
The integrated hopper has a capacity of 26 kg.
Cadel specifies pellet consumption of approximately 1 to 4 kg/h, corresponding to indicative autonomy of approximately 6 to 22 hours depending on output and operating conditions.
Maya Idro 18 features an Ø 80 mm flue outlet that can be configured at the top or rear of the stove.
A dedicated Ø 50 mm combustion air inlet is also provided.
The top outlet can be particularly useful for slim installations as it may help reduce the space required behind the appliance.
Cadel specifies an indicative heating volume of approximately 137 to 504 m³, corresponding to approximately 51 to 187 m².
These values are indicative. Actual heating performance depends on insulation, climate zone, ceiling height, hydraulic system configuration and actual building heat loss.
| Brand | Cadel |
| Model | Maya Idro 18 |
| Certificate model | MAYA IDRO 18 T3 |
| Type | Slim ventilated hydro pellet stove |
| Fuel | Ø 6 mm pellet |
| Nominal heat output | 18 kW |
| Nominal heat input | 19.4 kW |
| Reduced heat output | 4.9 kW |
| Nominal useful water output | 13.2 kW |
| Reduced useful water output | 3.1 kW |
| Nominal efficiency | 93% |
| Reduced-load efficiency | 94% |
| Indicative heating volume | 137 - 504 m³ |
| Indicative heating area | 51 - 187 m² |
| Pellet hopper | 26 kg |
| Pellet consumption | 1 - 4 kg/h |
| Indicative autonomy | 6 - 22 h |
| Net weight | 167 kg |
| Flue outlet | Ø 80 mm, top or rear |
| Combustion air inlet | Ø 50 mm |
| Burning pot | Cast iron |
| Wi-Fi | Integrated |
| Bluetooth | Integrated |
| GoFast | Yes |
| Hydraulic kit | Included |
| External thermostat connection | Yes |
| Water temperature sensor | Yes |
| Air temperature sensor | Yes |
| Programming | Daily and weekly |
| Italian environmental rating | 5 stars D.M. 186 |
Maya Idro 18 must be correctly sized and connected to the domestic heating system by qualified personnel.
Building heat demand, radiator output, system water volume, hydraulic configuration and chimney sizing must all be assessed before installation.
The choice between the Ø 80 mm top or rear flue outlet provides additional flexibility, particularly where installation depth is limited.
International Shipping & Warranty
Please check product compatibility with a local installer before purchasing. For any further information, please contact our customer service. |
