Cisa 19225 electric lock triple threading for upright
Cisa 19225 electric lock triple threading for upright
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description

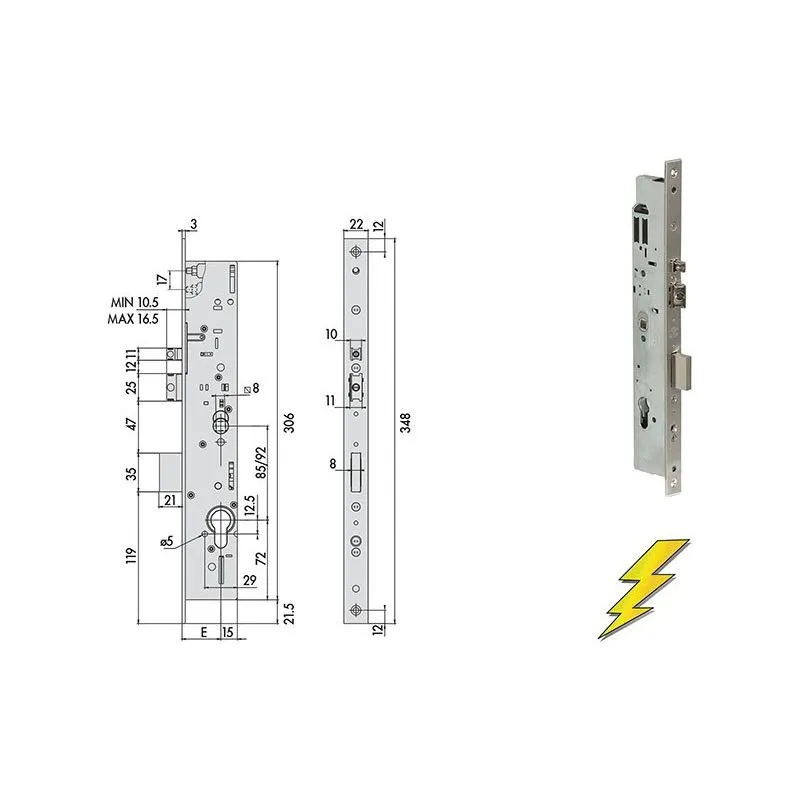

CISA electric mortise lock
for uprights - triple with gears
Series 19225 (ex 18225) MULTITOP PRO
ambidextrous
• System actuation device
with gears
• Box thickness 15.5 mm
• Anti-saturation system
• Die-cast metal box with
zinc coating
• Steel cover with zinc coating
• Interchangeable latch with the roller e
nickel-plated bolt
• Reversible latch or latch / piston
• Prepared for additional closures
Endowment:
• Pair of nylon studs art. 1.06012.01.0
• Pair of nylon frontal shims
art. 1.06141.65.0
• Threaded pins for fixing the extensions
• Lock and cylinder fixing screws
• Instruction sheet
Certification:
• This series of locks is certified according to European standard EN 12209: 03
- grade 6 Security (1000 Kg. to the side thrust and 600 Kg to the front thrust)
• Suitable for EN 1627: 2011 certified doors up to resistance class WK / RC 4
• 22x3 mm stainless steel front
• Deadbolt and latch
• Adjustable latch and piston from 10.5 to 16.5 mm. "Self-locking"
• Voltage 12Vac to CE
• Current consumption 3.1 A
Cylinder, rods and counterplates not included
Product Details
19225.25.0
Specific References
- ean13
- 8015345998433
