ISOAIR INOX double wall flue - IATS De Marinis - Condensate drain plug
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
CONDENSATE DRAIN CAP
STAINLESS STEEL CHIMNEY - DOUBLE WALL
STAINLESS STEEL AIR SYSTEM
IsoAIR INOX is the air-insulated double wall flue system with an internal wall in AISI 316 stainless steel and an external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
The absence of insulation reduces the overall dimensions to just 2 cm more than the nominal diameter of the internal smoke duct
Mechanical joint with locking collar and sealing gasket supplied as standard, practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa and operating temperatures of up to 200°C (traditional or condensing gas boilers, pellet stoves and boilers, kitchen and extractor hoods, etc.).
The entire ISOAIR INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

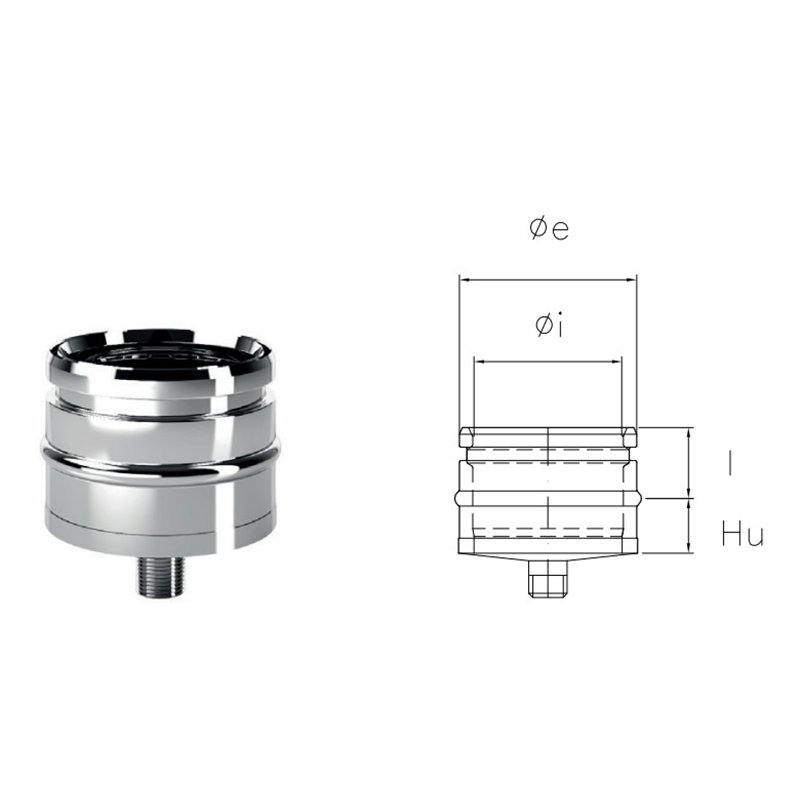

The condensate drain plug is used to collect and drain the condensate via a 3/4" male threaded fitting
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket)
Pressure class: P1 (with gasket)
Condensation resistance: W
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : L50040/50 Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
Cod. | Øi | Øe | Hu | I | |
---|---|---|---|---|---|
Acciaio Inox | IATS80 | 80 | 100 | 40 | 45 |
Acciaio Inox | IATS100 | 100 | 120 | 40 | 45 |
Acciaio Inox | IATS130 | 130 | 150 | 40 | 45 |
Acciaio Inox | IATS160 | 160 | 180 | 40 | 45 |
Acciaio Inox | IATS180 | 180 | 200 | 40 | 45 |
Acciaio Inox | IATS200 | 200 | 220 | 40 | 45 |
Acciaio Inox | IATS250 | 250 | 270 | 40 | 45 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
