CENTRAL CONDENSATE DRAIN CAP
COPPER FLUE - DOUBLE INSULATED WALL
ISO 10 COPPER SYSTEM

Iso10 COPPER is the double wall flue system insulated with 10mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in COPPER.
The ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions
Mechanical joint with locking collar and possible sealing gasket, practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The whole ISO 25 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

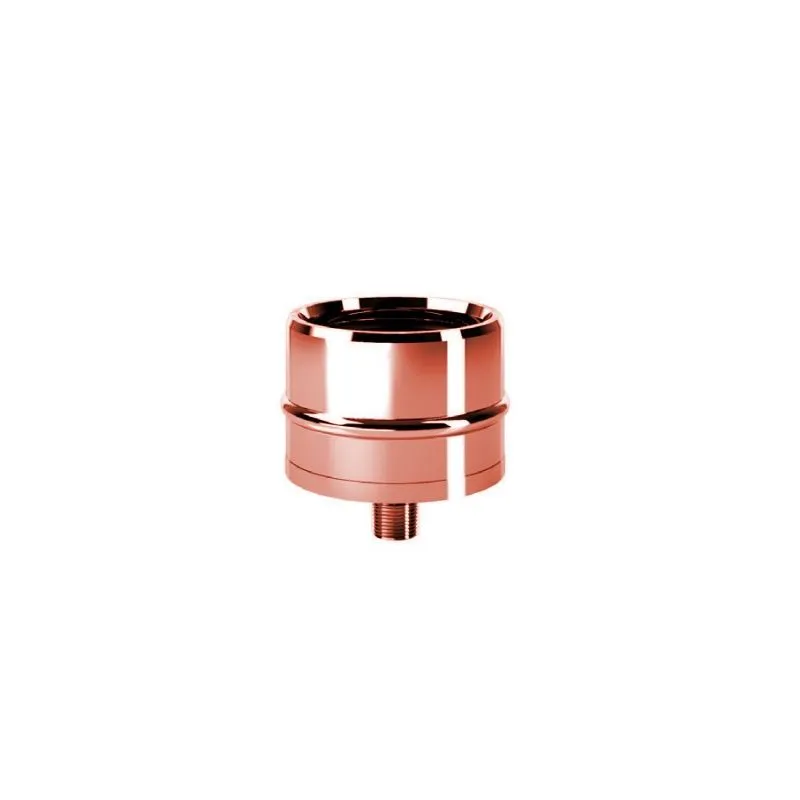

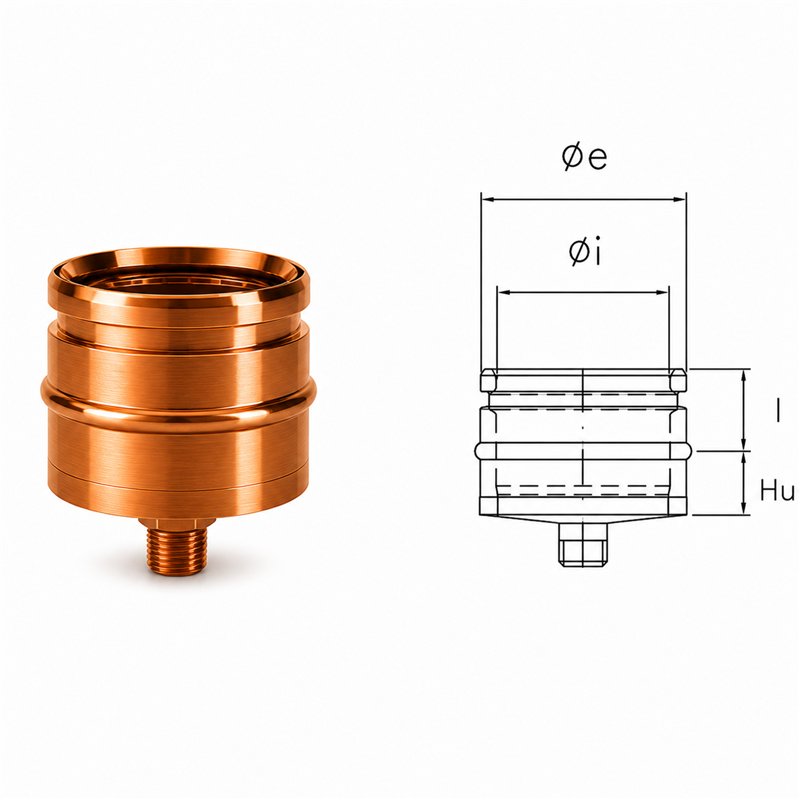

The condensate drain plug is used to collect and drain the condensate through a 3/4 "male threaded connection

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: L50040 Internal wall in Aisi 316 stainless steel th. 0.4- Natural COPPER external wall

Delivery terms: 1 week

Certification: 0476-Kiwa Cermet Italia spa

Warranty: 10 Years
