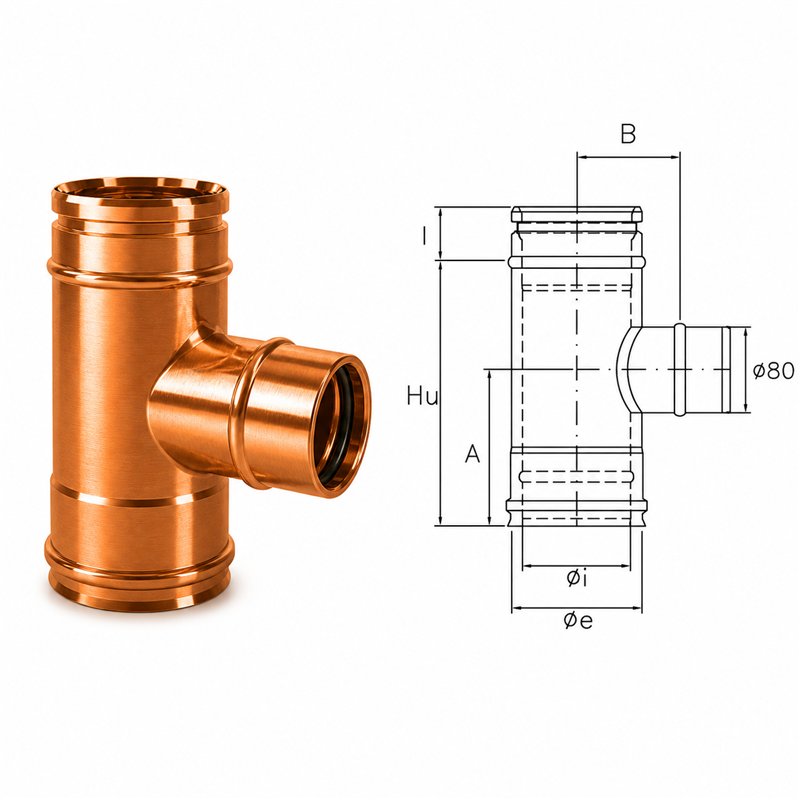

Tee 90 ° reduced single wall 80mm R1TR ISO10 COPPER Double wall flue

90 ° T-FITTING SINGLE WALL ENTRY ø80
COPPER FLUE - DOUBLE INSULATED WALL
ISO 10 COPPER SYSTEM

Iso10 COPPER is the double-walled flue system insulated with 10mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in COPPER.
The ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions
Mechanical joint with locking collar and possible sealing gasket, practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The whole ISO 25 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

The T fitting allows the connection between the vertical flue and the horizontal smoke channel; the horizontal connection is in a SINGLE WALL system designed for the connection of 80mm diameter mono pipes without the need for an additional connecting element

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: L50040 Internal wall in Aisi 316 stainless steel th. 0.4- Natural COPPER external wall

Delivery terms: 1 week

Certification: 0476-Kiwa Cermet Italia spa

Warranty: 10 Years
