Curve 45 ° R1C4 ISO10 COPPER Double wall flue
  • Curve 45 ° R1C4 ISO10 COPPER Double wall flue
  • Curve 45 ° R1C4 ISO10 COPPER Double wall flue

Curve 45 ° R1C4 ISO10 COPPER Double wall flue

R14980

Double wall flue ISO10 COPPER - R1C4 De Marinis 45 ° curve

Diametro
€75.50
€60.40 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

45 ° CURVE
COPPER FLUE - DOUBLE INSULATED WALL
ISO 10 COPPER SYSTEM

Iso10 COPPER is the double-walled flue system insulated with 10mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in COPPER.
The ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions
Mechanical joint with locking collar and possible sealing gasket, practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The whole ISO 25 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 45 ° curve allows you to move both vertically and horizontally

Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: L50040 Internal wall in Aisi 316 stainless steel th. 0.4- Natural COPPER external wall

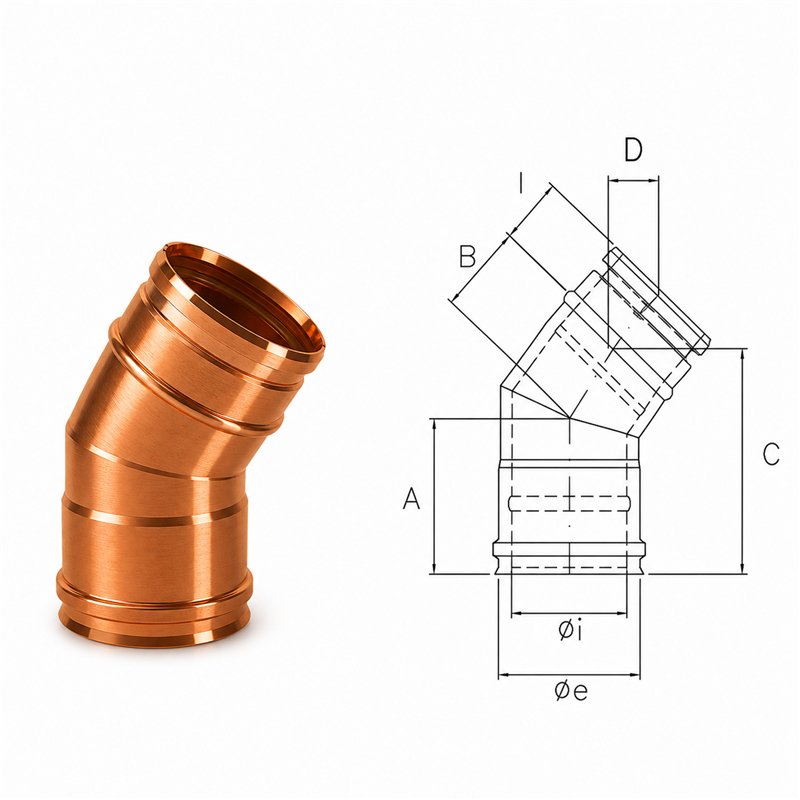

  Cod. Øi Øe A B C D I
Rame naturale R1C480 80 100 91 36 116 25 45
Rame naturale R1C4100 100 120 95 40 123 28 45



Delivery terms: 1 week


Certification: 0476-Kiwa Cermet Italia spa

Warranty: 10 Years



Product Details
R14980

Specific References

MPN
R1C4
