Reduction fitting I1RCDR ISO10 INOX Double wall flue

REDUCTION FITTING
STAINLESS STEEL CHIMNEY - DOUBLE WALL
ISO10 STAINLESS STEEL SYSTEM

Iso10 INOX is the double-walled flue system insulated with 10mm of high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency, durability and above all small size

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The entire ISO 10 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years

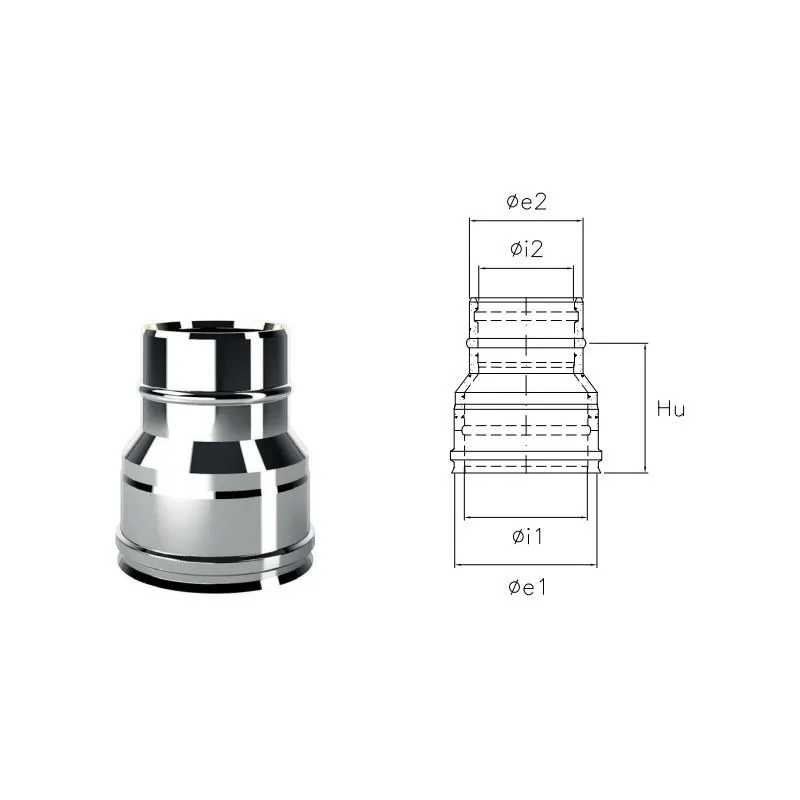

The mreduction allows you to switch from the 100mm size to the 80mm size in an ISO10 system
The smallest diameter is FEMALE, the largest is MALE

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
