Telescopic pipe I1ET ISO10 INOX Double wall flue

Name: Telescopic pipe I1ET ISO10 INOX Double wall flue
Brand: De Marinis
SKU: I1ET
Price: 54.26 EUR
Availability: PreOrder

Reference I1ET80

Brand De Marinis

Double wall flue ISO10 INOX - I1ET De Marinis - Telescopic element from 26cm to 34.5cm

TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

ORDERS PREPARED WITH CARE

We prepare every order with care

Description
Product Details

Description

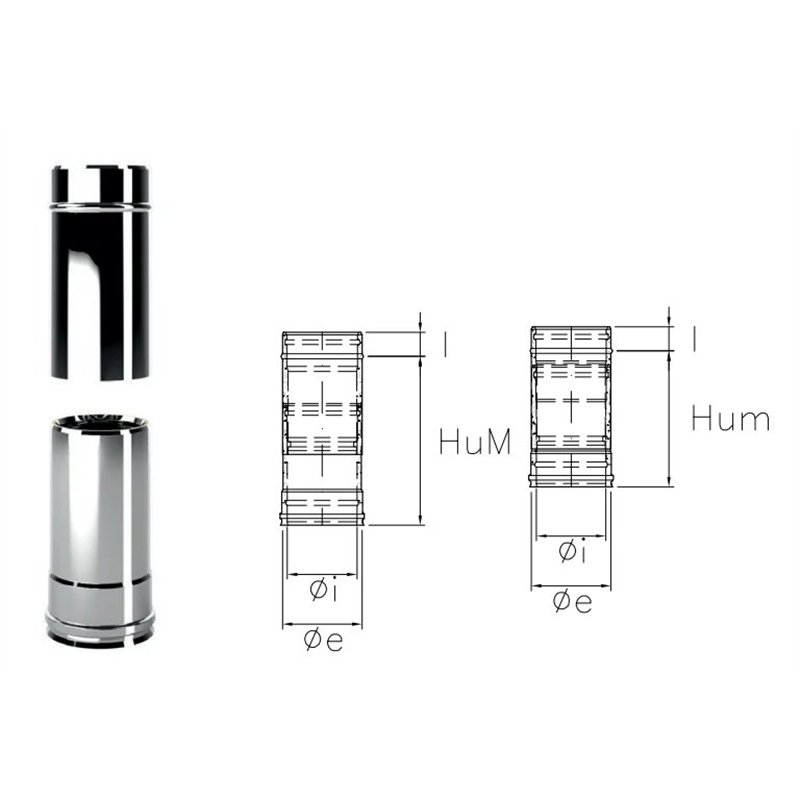

TELESCOPIC ELEMENT LENGTH 34.5 CM / 26 CM

STAINLESS STEEL FLUE - DOUBLE INSULATED WALL

ISO10 STAINLESS STEEL SYSTEM

Iso10 INOX is the double-walled flue system insulated with 10mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.

It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).

The whole ISO 25 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

The telescopic element makes it possible to create sub-horizontal sections of set length and with a minimum slope of 3% where it is not possible to use the straight element.

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket) - T600 (without gasket)

Pressure class: P1 (with gasket) - N1 (without gasket)

Condensation resistance: W (with gasket) - D (without gasket)

Corrosion resistance class: V2 (solid and liquid fuels)

Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
