Double-mono junction I1RCU ISO10 INOX Double wall flue
  • Double-mono junction I1RCU ISO10 INOX Double wall flue

Double-mono junction I1RCU ISO10 INOX Double wall flue

I1RCU80
De Marinis

ISO10 INOX double wall flue - I1RCU De Marinis - Joint from ISO10 system to MONO system

Diametro
€41.61
€33.29Save 20%
Quantity

help_outlineAsk about product
Double-mono junction I1RCU ISO10 INOX Double wall flue

Double-mono junction I1RCU ISO10 INOX Double wall flue

ISO10 INOX double wall flue - I1RCU De Marinis - Joint from ISO10 system to MONO system

I accept privacy policy rules

  TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

  PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

  ORDERS PREPARED WITH CARE

We prepare every order with care

Description
DOUBLE / MONO JUNCTION
STAINLESS STEEL FLUE - DOUBLE WALL
ISO10 STAINLESS STEEL SYSTEM

Iso10 INOX is the double wall flue system insulated with 10mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The whole ISO 10 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years

The double-mono junction is the connection that allows the passage from the double wall system to the single wall system (outlet connection)

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall

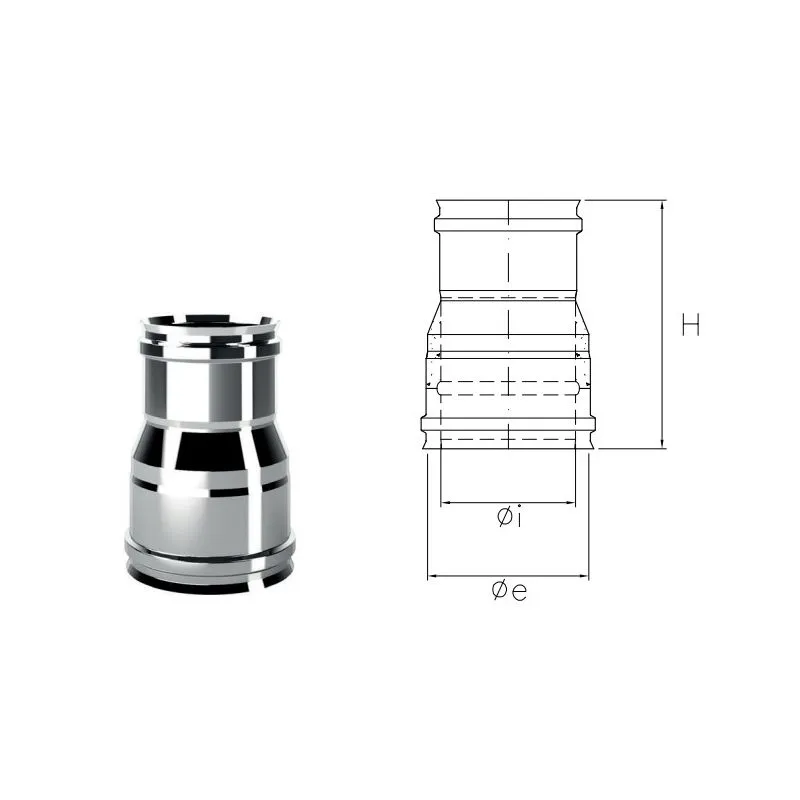

 Cod.ØiØeH
Acciaio InoxI1RCU8080100185
Acciaio InoxI1RCU100100120185

Garanzia: 10 Anni

Termini consegna materiale : 1 settimana

Certificazione : KIWA
