Inspection form I1IT ISO10 INOX Double wall flue
Double wall flue ISO10 INOX - I1IT De Marinis - Inspection module
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
INSPECTION FORM
STAINLESS STEEL FLUE - DOUBLE INSULATED WALL
ISO10 STAINLESS STEEL SYSTEM
Iso10 INOX is the double wall flue system insulated with 10mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency, durability and, above all, reduced dimensions
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The whole ISO 10 INOX line is certified according to the European standard EN-1856-1: 2009 and is guaranteed for 10 years
The inspection module, usually installed at the base of the flue, allows periodic inspection of the flue.
Can be used with positive pressures up to 200 Pa and temperatures up to 200 ° C
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall

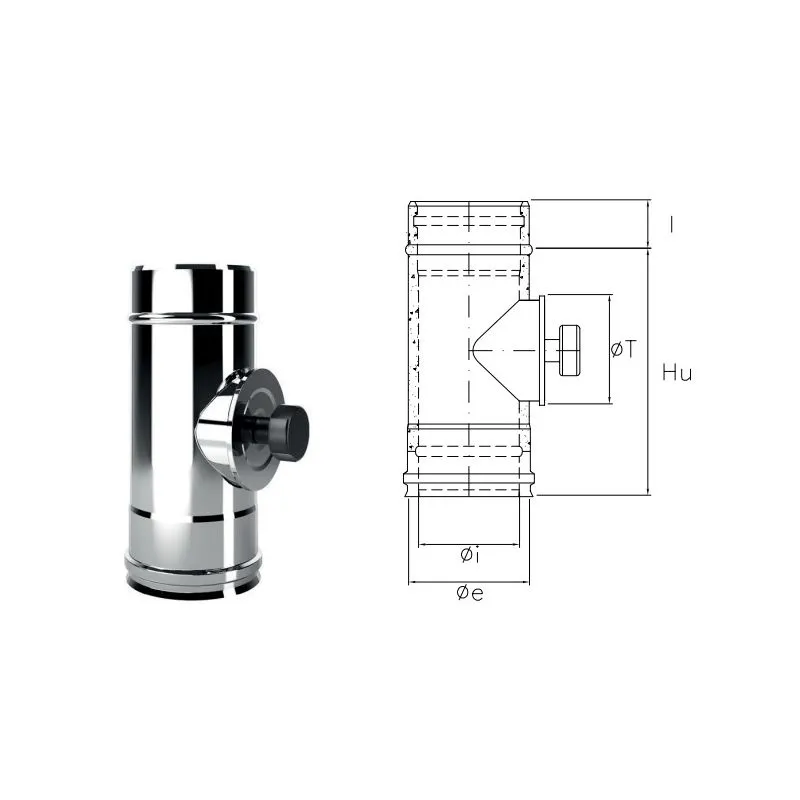

| Cod. | Øi | Øe | Hu | I | ØT | |
|---|---|---|---|---|---|---|
| Acciaio Inox | I1IT80 | 80 | 100 | 195 | 45 | 80 |
| Acciaio Inox | I1IT100 | 100 | 120 | 195 | 45 | 100 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
Product Details
I1IT80
