Intermediate support plate RM1PI ISO10 HAMMERED COPPER Double wall flue
Double wall flue ISO10 HAMMERED COPPER effect - RM1PI De Marinis - Intermediate support plate
No supplier
ISO10 double wall flue HAMMERED COPPER effect - RM1T2 De Marinis - 0.25 meter pipe
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

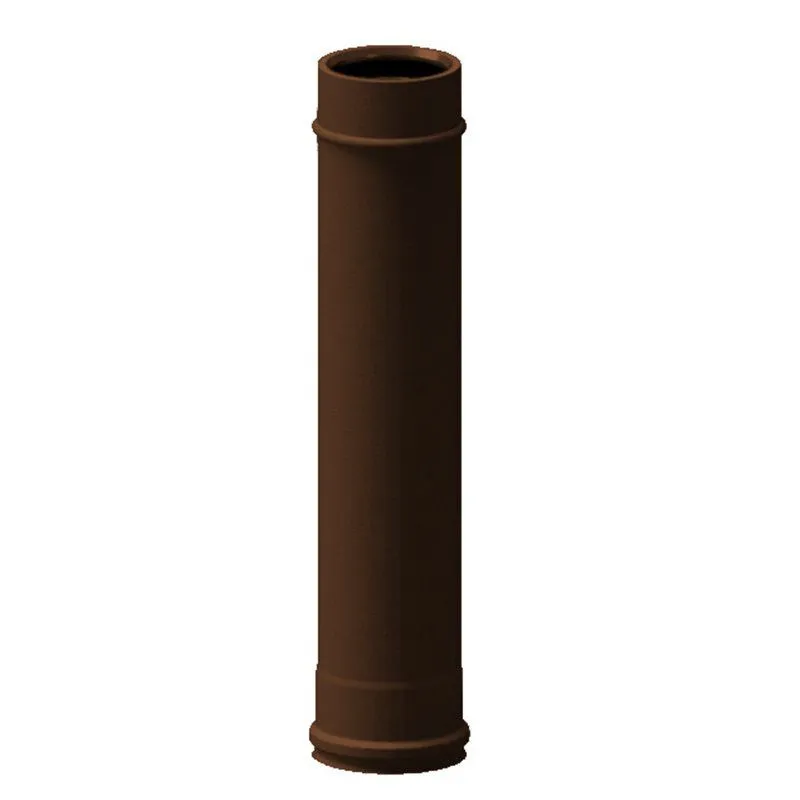

LINEAR ELEMENT LENGTH CM.25
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO 10 painted effect COPPER SYSTEM
Iso10 is the double-walled flue system insulated with 10mm high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in painted HAMMERED COPPER effect; the ideal choice for outdoor installations which combines product quality, efficiency, durability and above all reduced dimensions
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, traditional or condensing gas boilers, etc.).
The entire ISO 10 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years
The 250 mm straight element is used to create horizontal or vertical sections
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel th. 0,4- External wall in painted steel
Cod. | Øi | Øe | Hu | I | |
---|---|---|---|---|---|
Acciaio verniciato | RM1T280 | 80 | 100 | 195 | 45 |
Acciaio verniciato | RM1T2100 | 100 | 120 | 195 | 45 |
Termini consegna materiale : 3 settimane lavorative
Certificazione : KIWA
Garanzia: 10 Anni
