- Reduced price
Reference: RM2AR80
Brand: De Marinis
Weatherproof terminal cap RM2AR ISO25 HAMMERED COPPER Double wall flue
Weatherproof terminal cap RM2AR ISO25 HAMMERED COPPER Double wall flue
No supplier

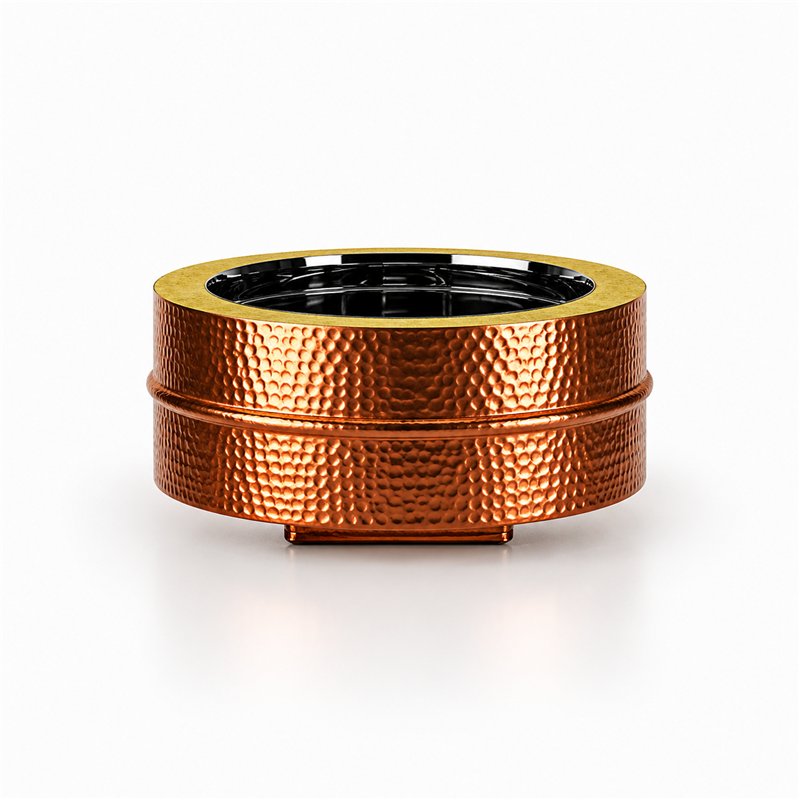

Blind cap R2TA ISO25 HAMMERED COPPER Double wall flue
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
BLIND CAP
STAINLESS STEEL FLUE - DOUBLE WALL INSULATED
ISO25 HAMMERED COPPER SYSTEM
Iso25 is the double-walled flue system insulated with 25mm of high-density mineral wool, with an internal wall in AISI 316 STAINLESS STEEL and an external wall in HAMMERED COPPER painted GALVANIZED sheet metal; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures of up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European standard EN-1856-1:2009 and is guaranteed for 10 years
The blind cap with handle is installed at the base of the flue system for closing and inspection, or as a predisposition on a T-fitting
Designation: EN 1856-1:2009 chimney system
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in galvanized sheet metal
Cod. | Øi | Øe | Hu | I | |
---|---|---|---|---|---|
Lamiera Zincata | RM2TA80 | 80 | 130 | 40 | 45 |
Lamiera Zincata | RM2TA100 | 100 | 150 | 40 | 45 |
Lamiera Zincata | RM2TA130 | 130 | 180 | 40 | 45 |
Lamiera Zincata | RM2TA150 | 150 | 200 | 40 | 45 |
Lamiera Zincata | RM2TA180 | 180 | 230 | 40 | 45 |
Lamiera Zincata | RM2TA200 | 200 | 250 | 40 | 45 |
Lamiera Zincata | RM2TA250 | 250 | 300 | 40 | 45 |
Garanzia: 2 Anni
Termini consegna materiale : 1 settimana
Certificazione : KIWA
