Reference: RM2T480
Brand: De Marinis
45° T-brake pipe N2T4 ISO25 HAMMERED COPPER Double wall flue pipe
45° T-brake pipe N2T4 ISO25 HAMMERED COPPER Double wall flue pipe
No supplier

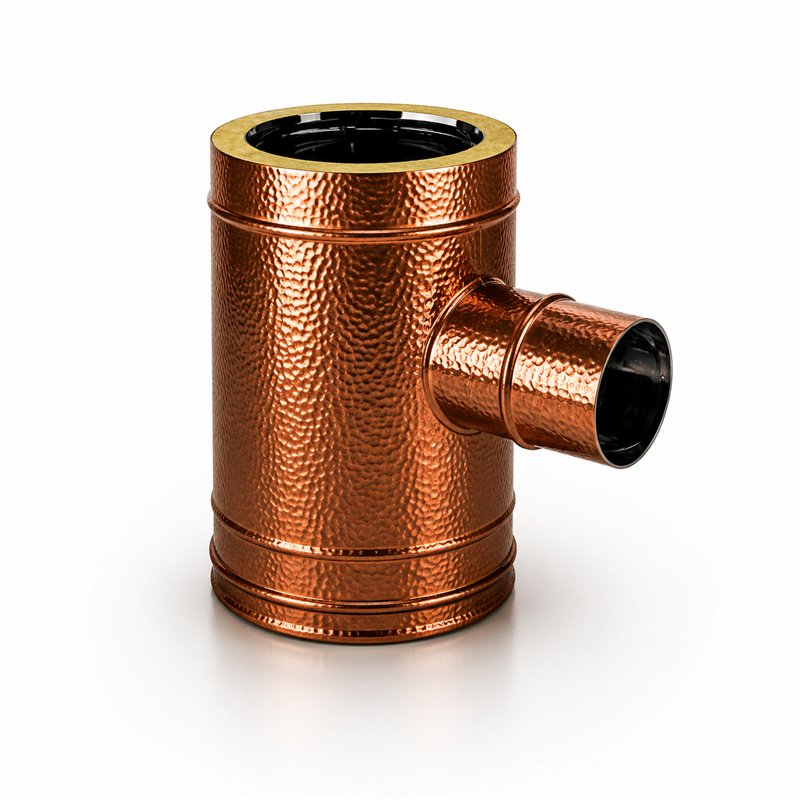

Reduced 90° T-Pipe Single Wall Diam.80mm N2TR ISO25 HAMMERED COPPER Double Wall Flue Pipe
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
90° T CONNECTOR SINGLE WALL ENTRY ø80
STAINLESS STEEL FLUE - DOUBLE WALL INSULATED
ISO25 SYSTEM HAMMERED COPPER
Iso25 is the double wall flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 STAINLESS STEEL and external wall in PAINTED GALVANIZED HAMMERED COPPER sheet metal; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures of up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European regulation EN-1856-1:2009 and is guaranteed for 10 years
The T-fitting allows the connection between the vertical flue and the horizontal smoke duct; the horizontal connection is in SINGLE WALL system with MALE or FEMALE connection so already prepared for the connection of 80mm diameter single wall pipes without requiring an additional connection element
Designation: EN 1856-1:2009 chimney system
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in galvanized sheet metal
Cod. | Øi | Øe | Hu | A | B | I | |
---|---|---|---|---|---|---|---|
Lamiera Zincata | RM2TR80 | 80 | 130 | 195 | 120 | 110 | 45 |
Lamiera Zincata | RM2TR100 | 100 | 150 | 195 | 120 | 120 | 45 |
Lamiera Zincata | RM2TR130 | 130 | 180 | 195 | 120 | 135 | 45 |
Lamiera Zincata | RM2TR150 | 150 | 200 | 195 | 120 | 145 | 45 |
Lamiera Zincata | RM2TR180 | 180 | 230 | 195 | 120 | 160 | 45 |
Lamiera Zincata | RM2TR200 | 200 | 250 | 195 | 120 | 170 | 45 |
Lamiera Zincata | RM2TR250 | 250 | 300 | 195 | 120 | 195 | 45 |
Garanzia: 2 Anni
Termini consegna materiale : 1 settimana
Certificazione : KIWA
