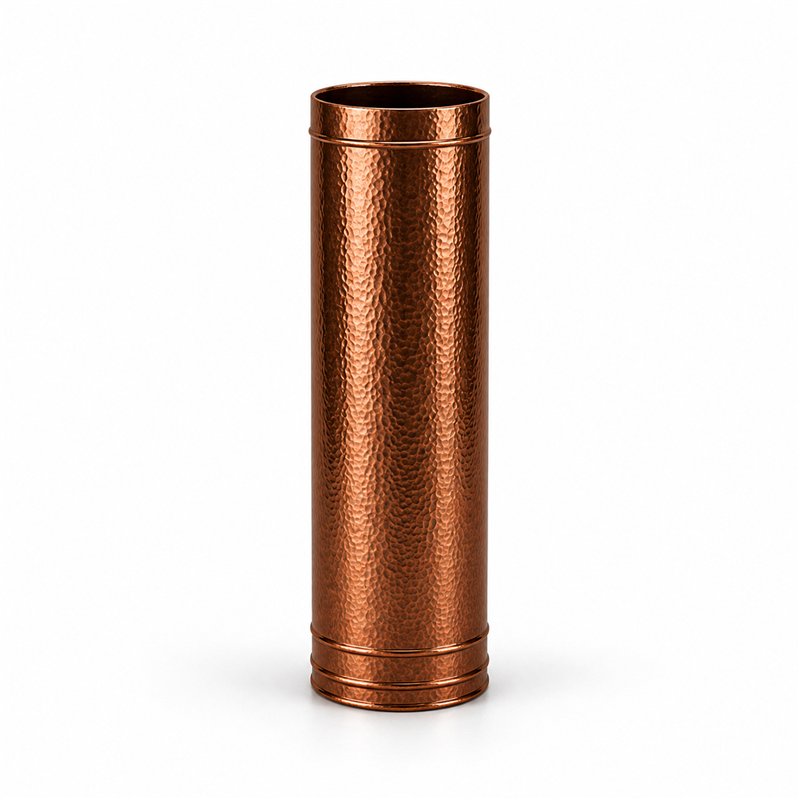

LINEAR ELEMENT LENGTH CM.100

STAINLESS STEEL FLUE - DOUBLE WALL INSULATED
ISO25 SYSTEM HAMMERED COPPER

Iso25 is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 STAINLESS STEEL and external wall in GALVANIZED sheet metal painted with a HAMMERED COPPER effect; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures of up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European standard EN-1856-1:2009 and is guaranteed for 10 years

The 1000 mm straight element is used to create horizontal or vertical sections

Designation: EN 1856-1:2009 chimney system

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in painted galvanized sheet metal
