- Reduced price
Reference: KCPC100
Brand: De Marinis
Pair of RUSTY De Marinis double wall flue base plate support fins ISO25
Pair of RUSTY De Marinis double wall flue base plate support fins ISO25
No supplier

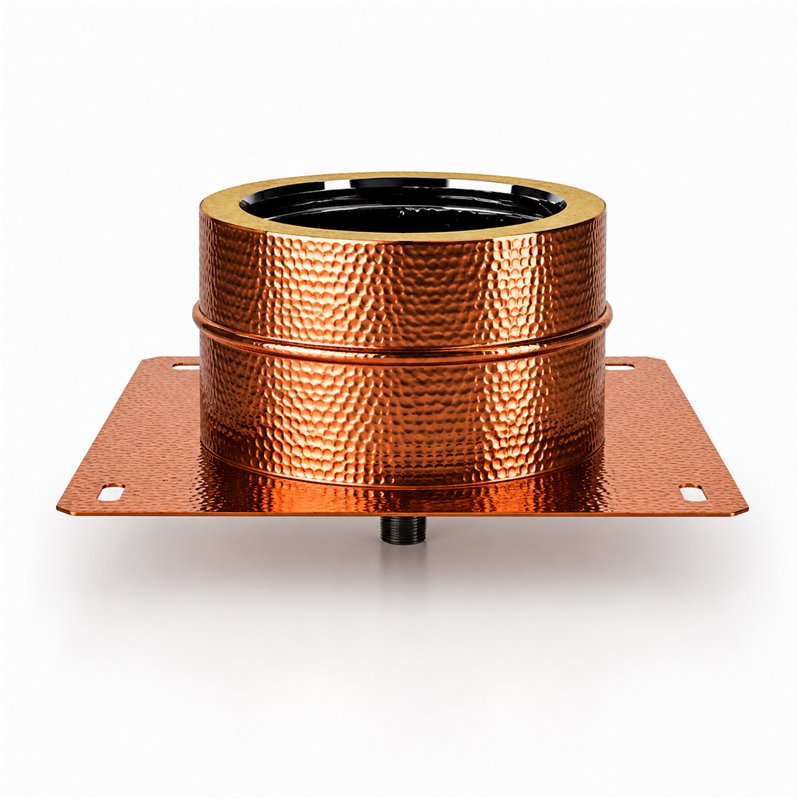

Base plate RM2PPC ISO25 HAMMERED COPPER Double wall flue
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
BASE PLATE WITH CENTRAL CONDENSATE DRAIN
STAINLESS STEEL FLUE - DOUBLE WALL INSULATED
ISO25 HAMMERED COPPER SYSTEM
Iso25 is the double-walled flue system insulated with 25mm of high-density mineral wool, with an internal wall in AISI 316 STAINLESS STEEL and an external wall in HAMMERED COPPER painted GALVANIZED sheet metal; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures of up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The entire ISO 25 INOX line is certified according to European regulation EN-1856-1:2009 and is guaranteed for 10 years
The base plate, installed on the ground or via support fins art. K2CP or K2CPC, allows the flue to be supported. It is equipped with a 3/4" female threaded connection for the central condensate drain. Especially suitable for combination with condensing generators
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in oxidized galvanized sheet metal
Cod. | Øi | Øe | Hu | A | B | I | |
---|---|---|---|---|---|---|---|
Lamiera Zincata | RM2PPC80 | 80 | 130 | 60 | 220 | 200 | 45 |
Lamiera Zincata | RM2PPC100 | 100 | 150 | 60 | 240 | 220 | 45 |
Lamiera Zincata | RM2PPC130 | 130 | 180 | 60 | 270 | 250 | 45 |
Lamiera Zincata | RM2PPC150 | 150 | 200 | 60 | 290 | 270 | 45 |
Lamiera Zincata | RM2PPC180 | 180 | 230 | 60 | 320 | 300 | 45 |
Lamiera Zincata | RM2PPC200 | 200 | 250 | 60 | 330 | 320 | 45 |
Lamiera Zincata | RM2PPC250 | 250 | 300 | 60 | 390 | 370 | 45 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 2 Anni
