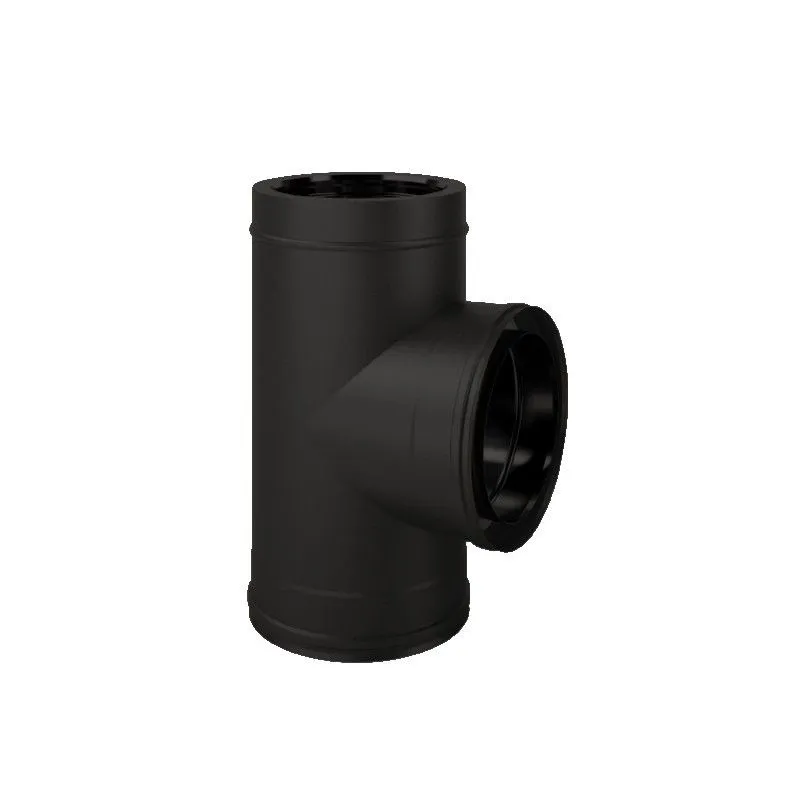

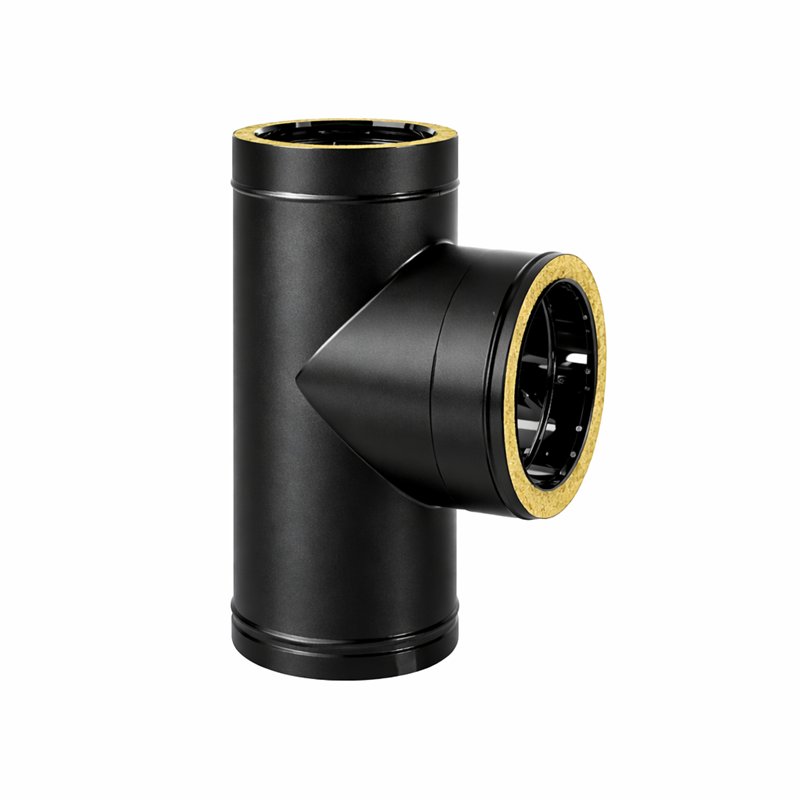

90° DOUBLE WALLED ENTRY TEE
STAINLESS STEEL CHIMNEY - INSULATED DOUBLE WALL
ISO25 SYSTEM MATT BLACK
Iso25 is the double-walled flue system insulated with 25mm high-density mineral wool, with an internal wall in AISI 316 stainless steel and an external wall in MATT BLACK PAINTED GALVANIZED sheet metal; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc.).
The entire ISO 25 INOX line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years
The T-fitting allows the connection between the vertical flue and the horizontal flue; the horizontal connection is in double wall system with MALE connection
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensate resistance: W (with gasket) - D (without gasket)
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : Internal wall in Aisi 316 stainless steel - External wall in galvanized sheet
Cod. | Øi | Øe | Hu | A | B | I | |
---|---|---|---|---|---|---|---|
Lamiera Zincata | K2T980 | 80 | 130 | 275 | 160 | 150 | 45 |
Lamiera Zincata | K2T9100 | 100 | 150 | 275 | 160 | 160 | 45 |
Lamiera Zincata | K2T9130 | 130 | 180 | 325 | 195 | 175 | 45 |
Lamiera Zincata | K2T9150 | 150 | 200 | 345 | 195 | 185 | 45 |
Lamiera Zincata | K2T9180 | 180 | 230 | 445 | 245 | 200 | 45 |
Lamiera Zincata | K2T9200 | 200 | 250 | 445 | 245 | 210 | 45 |
Lamiera Zincata | K2T9250 | 250 | 300 | 445 | 245 | 235 | 45 |
Garanzia: 2 Anni
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Reference: K2TS80
Brand: De Marinis
