Security lock for armored door
Mottura 54.587
Triple with half turn diam. 20mm
double bit key with European cylinder service lock

Mottura multi-system locks allow the updating of armoured doors with old-generation double bit locks and, at the same time, allow the main key to be inhibited from opening

Main lock with double bit security key (A)
Service lock with predisposition for European cylinder (B) - the cylinder controls the half turn of the main lock

Main double bit lock
Service lock controlled by European profile cylinder (not supplied)
Key entry and handle mm.63
Easy-Go system for easy key change
4 Bolts diam.18mm
Rod stroke mm.20
Bolt stroke mm.40
Supplied with 3 double bit keys of mm.40
Reversible half turn
Standard bolt centre distance 28mm (37mm on request)

RIGHT OR LEFT hand version

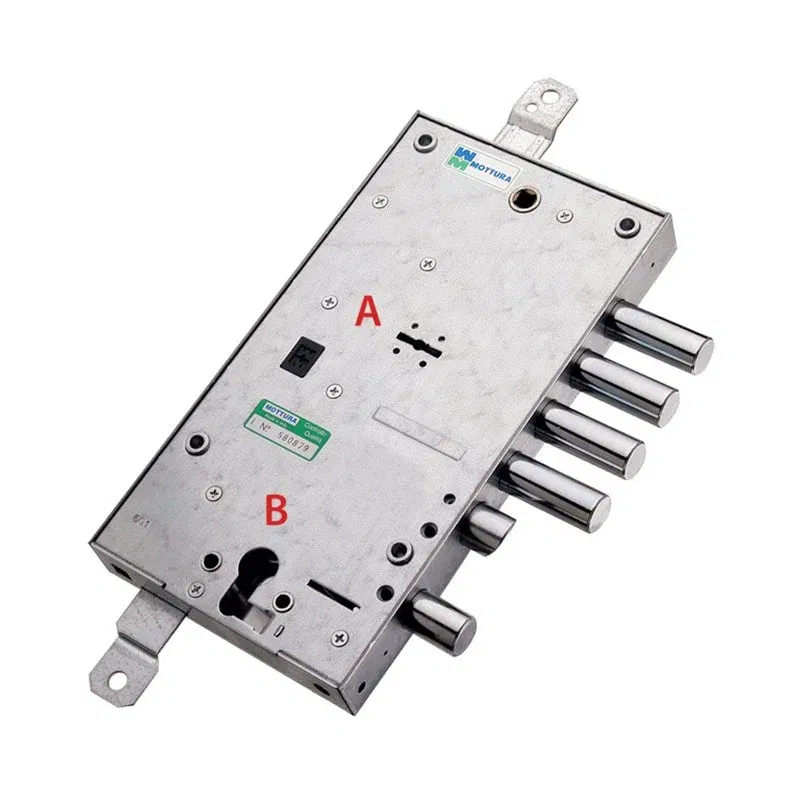

(the photo refers to the RIGHT version)
