Security lock for armored door
Mottura 54.597
Triple with half turn diam. 20mm
double bit key with European cylinder blocking lock

Mottura multi-system locks allow the updating of armoured doors with old-generation double bit locks and, at the same time, allow the main key to be inhibited from opening

Main lock with double bit security key (A)
Blocking lock with predisposition for European cylinder (B) - the cylinder blocks the opening of the main lock

Double bit main lock
Service lock controlled by European profile cylinder (not supplied)
Key and handle entry mm.63
Easy-Go system for easy key change
4 Bolts diam.18mm
Rod stroke mm.20
Bolt stroke mm.40
Supplied with 3 double bit keys mm.40
Reversible half turn
Standard bolt centre distance 28mm (37mm on request)

RIGHT OR LEFT hand version

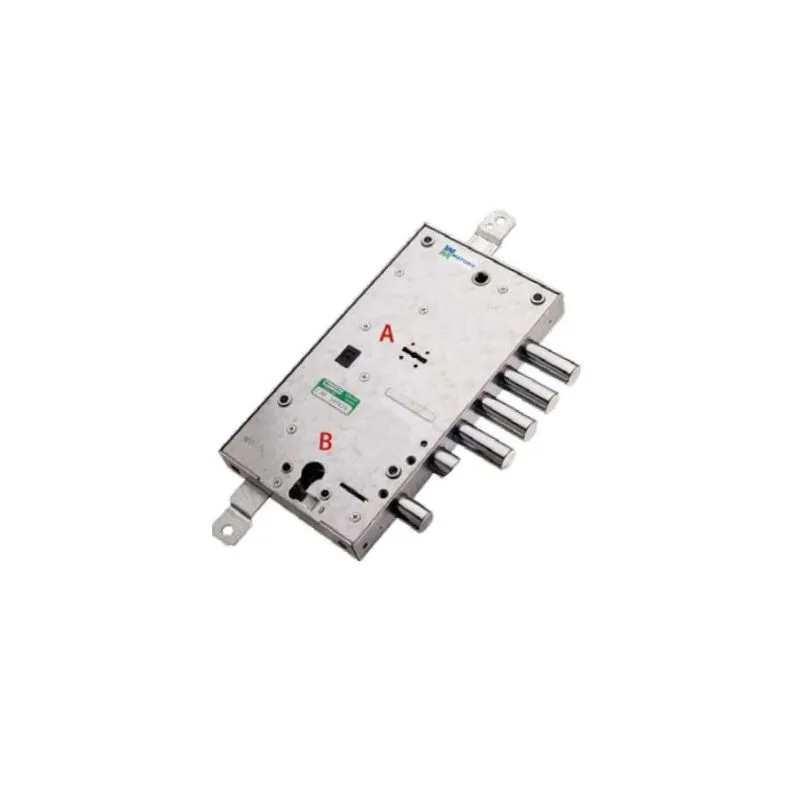

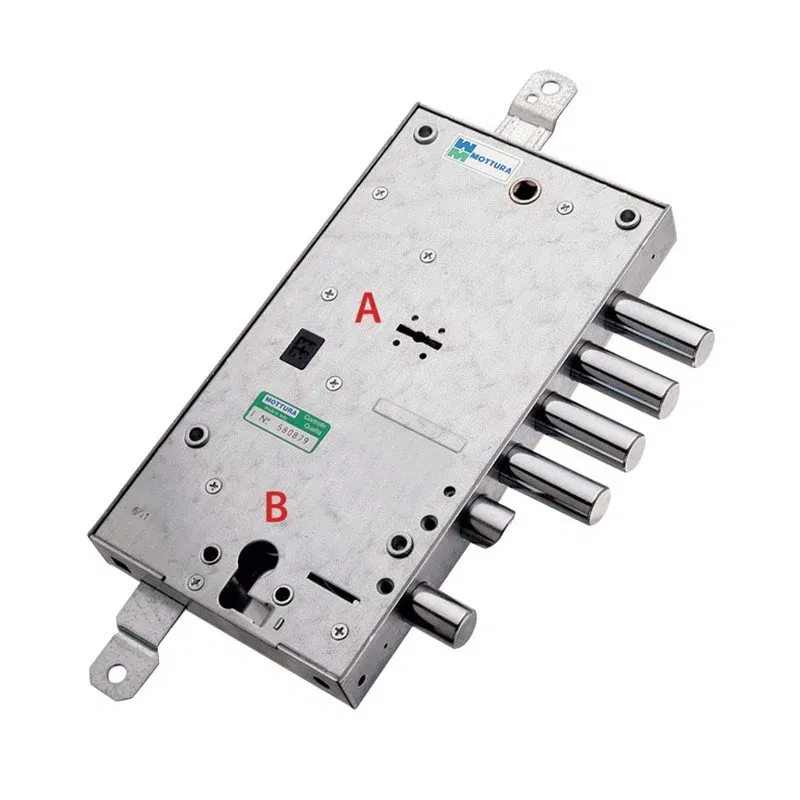

(the photograph is refers to the RIGHT version)
