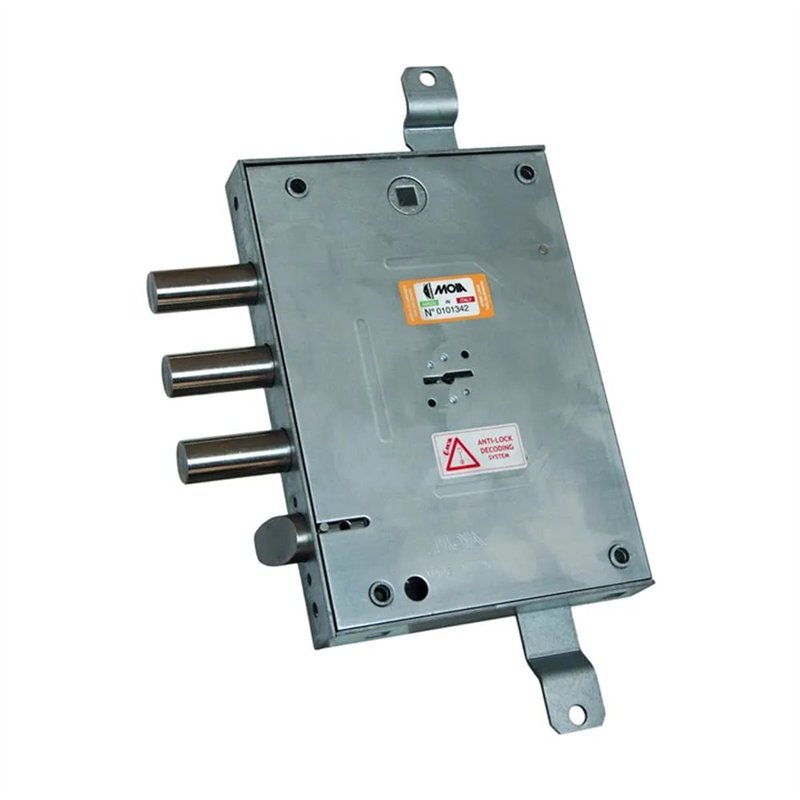

SECURITY LOCK FOR ARMORED DOOR
MOIA 614/370D
TRIPLE WITH HALF TURN

Protection against drilling thanks to the internal plate with anti-drill pins. High resistance to forcing thanks to the double mantonnet. The double sealing pin is an effective system to protect oneself, as much as possible, from the risk of break-ins. In this type of mechanism, the traditional sealing pin overcomes, turn after turn, the obstacles of the inconsistent gorges; the second pin, however, reaches its seat at the 4th turn, that is, in the condition in which the lock is found when it is completely closed and against which the potential burglar acts. The final result of the operational union of the 2 sealing pins is a compact force capable of effectively resisting break-ins.
Key with asymmetric map with reduced pitch. Anti-"force key" latch tail.

Reversible
Key entry 63mm
Box size 240x140mm
Deadbolt center distance 37 mm
Compatible with MOTTURA and Atra Dierre series locks (6011-6012)
