Security lock for armored door
Mottura 89.N571/032 DIBI
Triple with 1/2 turn
double bit key

Triple with half turn activated by the follower and the key

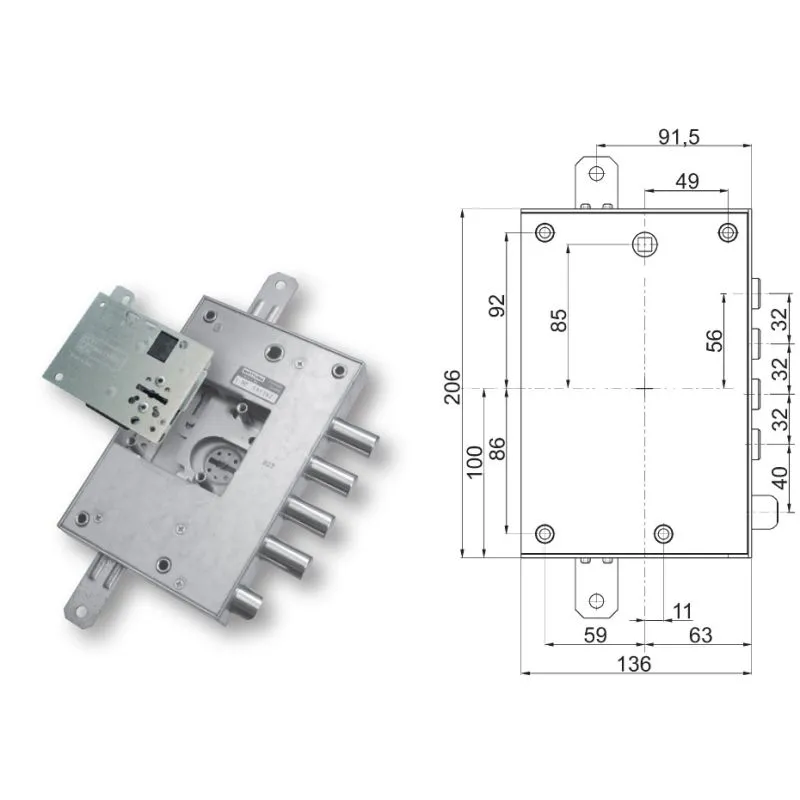

Box size 136x206
Keyset mm.63
2 send
Distance between bolts mm.32
Rod stroke mm.20
Bolt travel mm.36
3 double bit 40mm keys supplied
supplied with special NUCLEO and ANTIDECO DUE system against lock picks and Bulgarian keys
RIGHT OR LEFT hand version

(the photograph refers to the RIGHT version)

Important note:

'SPARE PARTS' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
The WITHDRAWAL cannot be requested on this product
